Permanent round magnet – 244.6
Price range: 3,641.00lei through 23,612.00lei INC. TVA

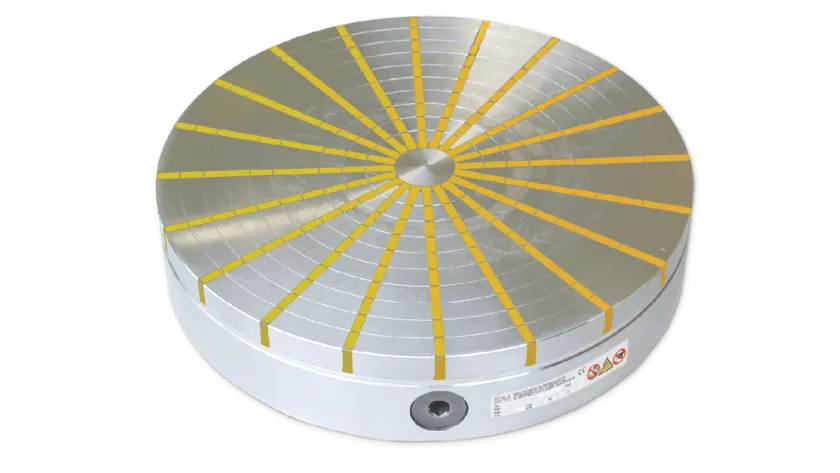

ComparePERMANENT MAGNETIC CIRCULAR CHUCKS With radial pole pitch
APPLICATION
For round and ring-shaped workpieces.
DESIGN
High magnetic force. Concentric rings allow
easy alignment of workpieces. Magnetic field
continuously adjustable up to ? 300 mm. Through
hole possible up to max. diameter D. Standard
version without through hole at the centre.
Diameter C is magnetically not active. Available
with flange on request (see SAV 248.90 to 248.95).
Larger diameters with T-grooves on request.
Pole gap with brass pigment.
TECHNICAL DATA
? Rated holding force: 80 to 150 N/cm2
? Wear thickness of the top surface:
5 mm (for A = 100 to 300 mm)
10 mm (for A = 350 to 400 mm)
? Geometrically balanced: G 6.3
execution –For clamping profiled workpieces on permanent round magnet SAV 244.06. Fastening to magnet by arrangement.
Technical data –
- Permissible tread depth: max. 8 mm
- If a larger profile depth is required, dimension B of 25 mm is available on request.
adhesive force – very high adhesive force
min. nominal holding force – 150 N/cm?
workpieces – ring-shaped workpieces with radial pole pitch
data sheet
FOR MORE INFORMATION SAV-248-05_EN.pdf
| MAGNET SIZE | 100, 130, 150, 200, 250, 300, 350, 400, 500 |
|---|
