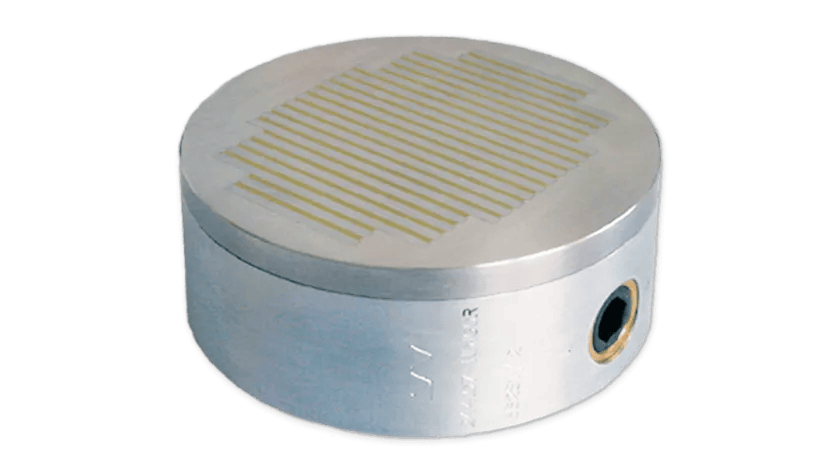

Neodymium round magnets with parallel pole pitch – 244.07
Price range: 7,295.00lei through 14,465.00lei INC. TVA
CompareNEODYMIUM MAGNETIC CIRCULAR CHUCKS
With parallel pole pitch P = 6 mm, neodymium magnets
with extremely high holding force
APPLICATION
For workpieces which are difficult to chuck,
e.g. Ferro-Tic and tungsten carbide with cobalt
content. For small and very small workpieces.
DESIGN
Aluminium housing, stainless steel pole plate.
Extremely high holding force through use
of neodymium iron boron magnet materials
and a specially developed process. Available
with flange on request (see SAV 248.90
to 248.94). Pole gap with brass pigment.
Available with adaptation for zero-point
workholding system.
TECHNICAL DATA
? Rated holding force: 120 N/cm2
(On inducible steel surface: 180 N/cm2)
? Magnetic field height: 4 mm
? Wear layer of the pole plate: 3 mm
FOR MORE INFORMATION – DATA SHEET
| MAGNET SIZE (MM) | 100, 125, 160, 200 |
|---|
