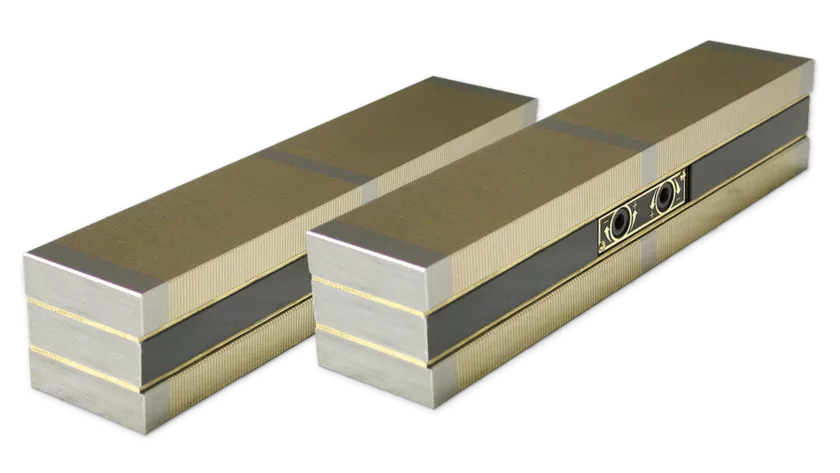

PERMANENT MAGNETIC BEAMS With transverse pole pitch top and bottom
APPLICATION
As a workholding fixture for holding workpieces on EDM machines and machine tools,
for jigs, etc.
DESIGN
Two opposite chucking areas, separate
switching. Only available in pairs. Low
magnetic field due to fine pole pitch.
TECHNICAL DATA
? Parallelism: 0.02 mm
? Pole pitch: 1.3 mm
? Magnetic field height: 6 mm
? Wear layer of the pole plate: 6 m
editing – grinding, sinking EDM
Application – for workpiece release
product type – pole plates, magnetic blocks and accessories
SAV catalog number – SAV 243.15
execution – Two opposing clamping surfaces, each separately switchable. Only available in pairs. Low magnetic field due to fine pole pitch.
adhesive force – low adhesive force
min. nominal holding force – 5 N/cm?
workpieces – thin workpieces, medium size with transverse pole pitch
| MAGNET WIDTH | 125 MM, 180 MM, 250 MM |
|---|
