Permanent magnet clamping blocks – 242.11
Price range: 3,456.00lei through 4,019.00lei INC. TVA

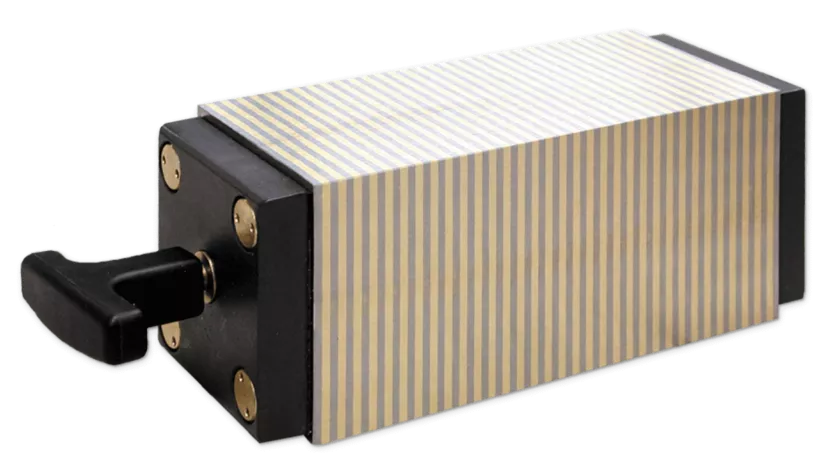

ComparePERMANENT MAGNETIC CLAMPING BLOCKS
With four magnetic chucking areas, also as a stainless version
APPLICATION
For angled and parallel grinding of small and
medium workpieces.
DESIGN
Sturdy design with good magnetic force.
Pole divisions made of 2 mm brass/
2 mm steel.
TECHNICAL DATA
? Standard rated holding force: 50 N/cm2
? Rated holding force, stainless (RF): 30 N/cm2
? Magnetic field height: 2 mm
? Wear layer of the pole plate: 4 mm
SAV 242.11 – RF consisting of stainless,
high-alloy chrome steel poles. Primarily
suitable for use on EDM machines.
editing – Grinding, sinking EDM, wire EDM
product type – pole plates, magnetic blocks and accessories
SAV catalog number – SAV 242.11
execution – Stable construction with good magnetic force. Slats made of 2 mm brass/2 mm steel.
workpieces -? thin workpieces, small size, high alloy with four magnetic clamping surfaces, also stainless
FOR MORE INFORMATION – DATA SHEET
| MAGNET WIDTH | 140, 160, 140 RF, 160 RF |
|---|
