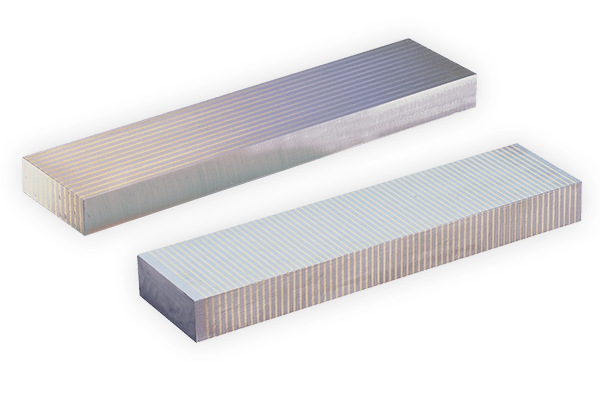

Laminated Top Plates – 248.03
Price range: 1,105.00lei through 3,899.00lei INC. TVA
CompareLAMINATED TOP PLATES For placing on magnetic chucks with parallel pole pitch
APPLICATION
For placing on magnetic chucks with parallel
divisions to conduct the magnetic field into the
workpiece.
DESIGN
Attaching to a magnet upon agreement.
TECHNICAL DATA
? Pole pitch: 3 mm steel, 1 mm brass
? Profile depth: Max. 8 mm
FOR MORE INFORMATION – DATA SHEET
| DIMENSIONS (MM) | 320X75X25, 650X75X25, 320X100X40, 650X100X40, 250X75X25, 500X75X25, 250X100X25, 500X100X25, 400X75X25, 250X75X40, 500X75X40, 200X100X40, 400X100X40, 500X100X40 |
|---|
