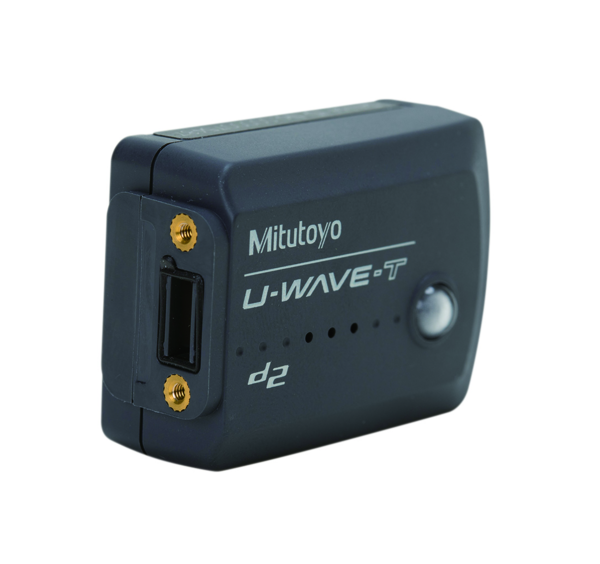

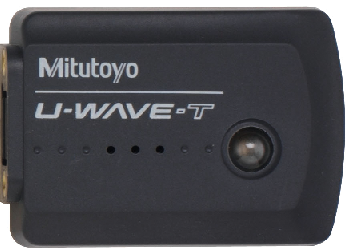

U-WAVE-T, Buzzer Type

Full Description: The Mitutoyo U-WAVE system enables easy wireless data communication from a measuring tool to a PC using the Digimatic protocol. Measurement workability is improved by eliminating the long and cumbersome data cables usually required and the user-friendly interface allows data to be loaded into any software product that accepts keyboard input, such as Excel* or Notepad.; Mass [g]: 23; Remarks: Standard; Dimensions (WxDxH): 44 x 29.6 x 18.5; Communication distance: Approx. 20 m (within visible range); Communication frequency: 2,4 GHz band (2,405-2,475 GHz, 15 channels, 5 MHz interval); Measuring Instruments: Indicator, 3-Point Inside Micrometer, Carbon Fibre Caliper, Height Gauge, a.s.o; Modulation method: DS-SS (Direct Sequence Spread Spectrum); Power supply report: Battery CR2032; System: U-WAVE (Transmitter); Transmission output: 2,5 mW (4 dBm) or below; Wireless communication protocol: Proprietary (2,4 GHz by original specification based on IEEE 802.15.4); Battery life: Approx. 400000 transmissions; Data reception indication: Buzzer and LED (green, red, orange); Type: U-WAVE-T for miscellaneous instruments; Features: The U-WAVE system enables easy wireless data communication from a measuring tool to a PC using the Digimatic protocol. Measurement workability is improved by eliminating the long and cumbersome data cables usually required and the user-friendly interface allows data to be loaded into any software product that accepts keyboard input, such as Excel or Notepad. Transmits measurement data to U-Wave-R. Select IP67 or buzzer model, according to your application. U-WAVE-R can be connected to Digimatic gauges by dedicated cable for U-Wave-T (Option). ;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/U-WAVE-fit/U-WAVE-T%2C%20Buzzer%20Type/$catalogue/mitutoyoData/PR/02AZD880G/index.xhtml
