Tube Micrometer, Spherical Anvil/Spindle

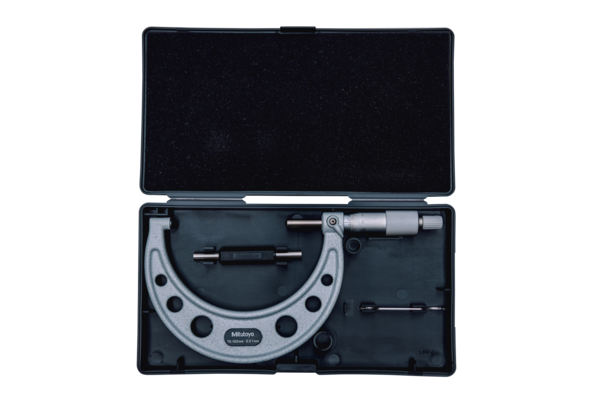

Full Description: This Tube Micrometer allows you to measure curved surfaces such as the wall thickness of tubes, bearings and rings.; Magnetic stand size (LXWXH): 18; Mass [g]: 375; Range [mm]: 75 – 100; Functions: Model with spherical anvil and spindle face; Inch-Metric: Metric; Delivered: Including box, setting standard (from 25 mm upward), key; Digital/Analog: Analog; Graduation: 0,01 mm; Measuring force: 5 – 10 N; Max. Permissible Error J MPE: ?4 ?m; Accuracy [?m]: ?4; Min of Measuring force: 5; Max of Measuring force: 10; Measuring spindle: With spindle lock, ?6,35 mm, spindle pitch 0,5 mm; Measuring face: Spindle and anvil: carbide-tipped, micro-lap finish (115-1xx, 115-2xx) spindle: carbide-tipped, micro-lap finish anvil: hardened steel (115-3xx); Scale: Thimble and sleeve satin chrome finish, ?18 mm; Anvil / Spindle: Type F, spherical anvil and spindle SR=4 mm;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/01.02.01.070/Tube%20Micrometer%2C%20Spherical%20Anvil/Spindle/$catalogue/mitutoyoData/PR/115-218/index.xhtml
