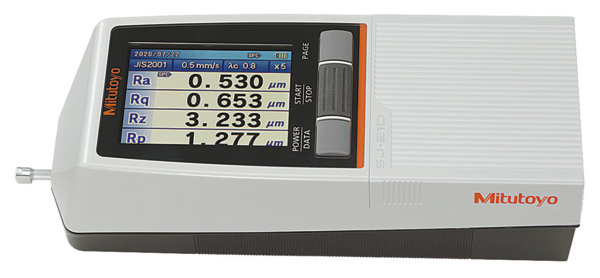

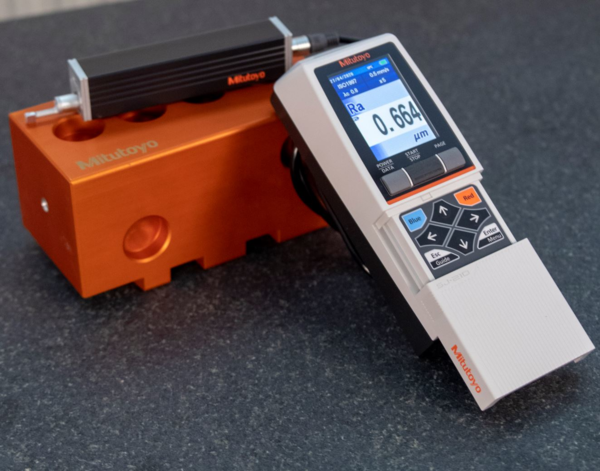

Surftest SJ-210 [mm]

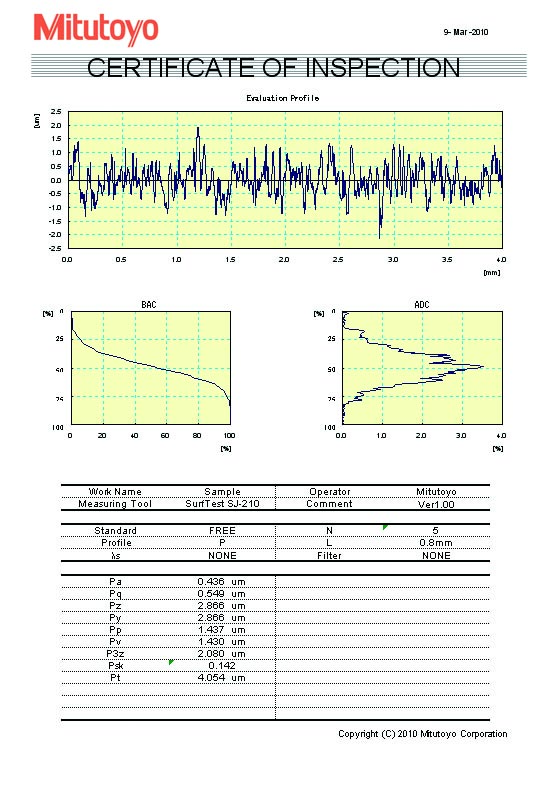

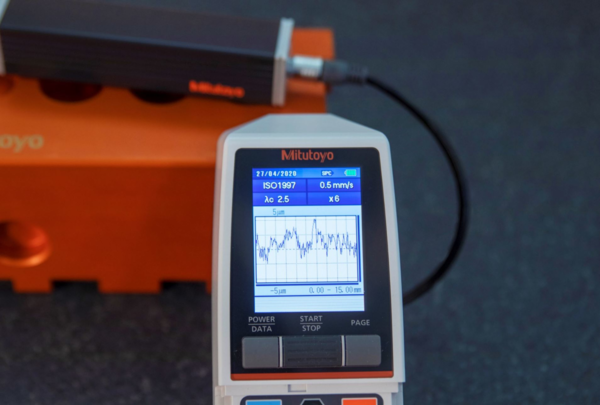

Full Description: This is a portable measuring instrument that allows you to easily and accurately measure surface roughness. The Surftest SJ-210 offers you the following benefits: Skid system gives you user friendly and intuitive menu navigation. It works independently of mains power, allowing you to make on-site measurements. The 6.0 cm [2.4?] colour graphic, back-lit LCD gives you excellent readability. It performs roughness analyses conform to various international standards (EN ISO, VDA, ANSI, JIS) and customized settings. Different drivers expanding the range of applications. Calculation results, assessed profiles, bearing and amplitude curves can be displayed. Support of?21? languages . Operation by keys on the front and under the sliding cover. ; Mass [g]: 500; Description: SJ-210 model; Power supply report: Via AC adapter (DC 7.5 V 1.5 W) built-in or rechargeable battery; Functions: Switchable between 16 languages: Japanese, English, German, French, Italian, Spanish, Portuguese, Czech, Polish, Hungarian, Turkish, Swedish, Dutch, Korean, Traditional Chinese, Simplified Chinese; Inch-Metric: Metric; Min of Measuring force: 0.75; Max of Measuring force: 0.75; Detector measuring force: 0.75; Stylus tip angle: 60?; Stylus tip radius: 2; Skid radius: 40 mm; Profiles: Roughness Profile (R), R-Motif, DF-Profile and more; Roughness standard: EN ISO, VDA, JIS, ANSI and customize settings; No. of sampling length (L): x?1, x?3, x?5, x?L; Auto-sleep: Automatic after 30 seconds; Cable length: 1; Digital filter: Gauss, 2CR75, PC75; Interface: USB, Digimatic, RS-232C, Foot switch; Measuring speed: 0.25 mm/s; 0.5 mm/s; 0.75 mm/s; Tolerance: Coloured upper / lower limit; Traverse: 17.5 mm, 5.6 mm [S-type];Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/1292249246959/Surftest%20SJ-210%20%5Bmm%5D/$catalogue/mitutoyoData/PR/178-560-11D/index.xhtml
