Sheet Metal Micrometer

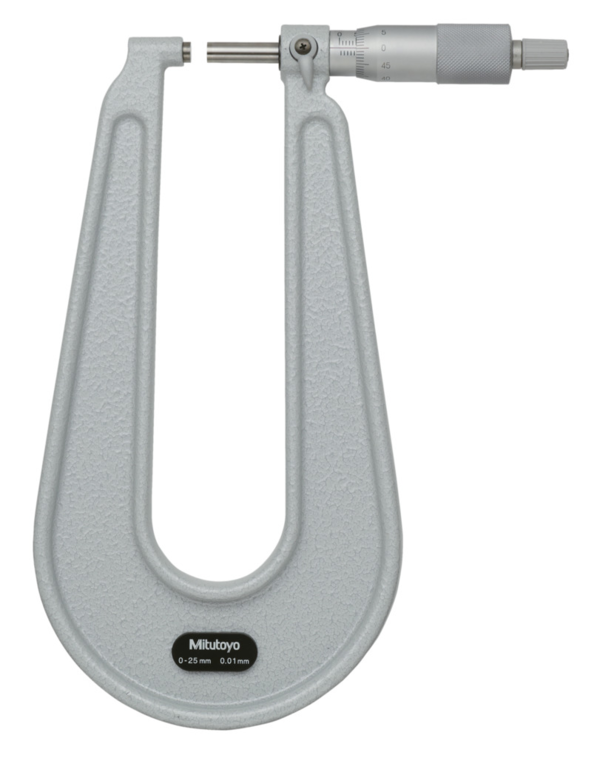

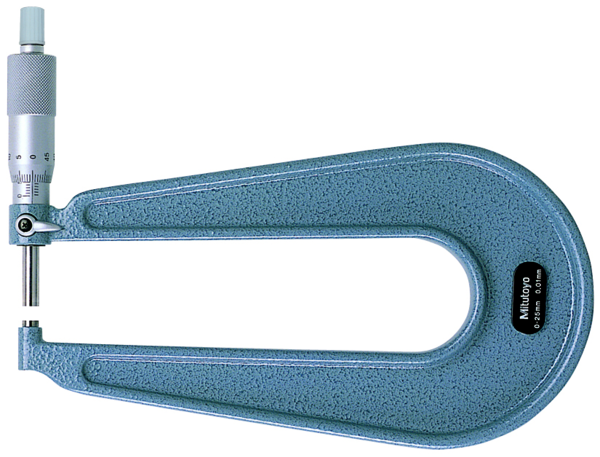

Full Description: A Mitutoyo non-digital micrometer provided with a deep frame to enable measurement of sheet metal thickness farther from the edge of a sheet than is possible with a standard micrometer. A ratchet stop guarantees repeatable measurement.; Stem hole ?: 6.35; Magnetic stand size (LXWXH): 43; Base size (LxWxH): 27.5; Clamping force (vertical): 14.5; Mass [g]: 740; Range [mm]: 0 – 25; Inch-Metric: Metric; Delivered: Including box, key, setting standard (from 25 mm upward); Digital/Analog: Analog; Graduation: 0,01 mm; Flatness: 0,6 ?m; Max. Permissible Error J MPE: ?4 ?m; Parallelism: 3 ?m; Accuracy [?m]: ?4; Measuring spindle: With spindle lock, throat depth ? 150 mm : ?6,35 mm throat depth =300 mm : ?8 mm, spindle pitch 0,5 mm; Measuring face: Carbide-tipped, micro-lap finish; Scale: Thimble and sleeve satin chrome finish, ?18 mm; Anvil / Spindle: Type A, flat/flat;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/01.02.01.065/Sheet%20Metal%20Micrometer/$catalogue/mitutoyoData/PR/118-102/index.xhtml
