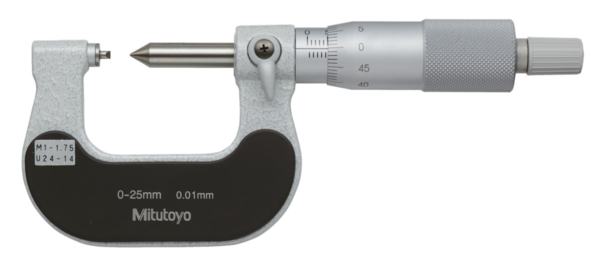

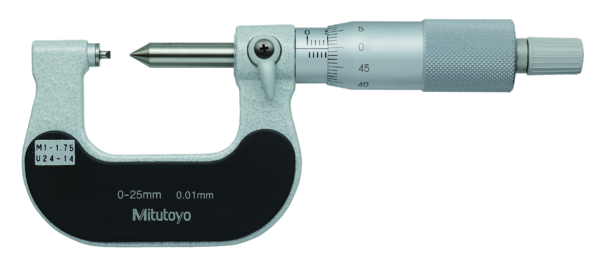

Screw Thread Micrometer

Full Description: This Screw Thread Micrometer has a fixed anvil, offering the following benefits: Fixed anvil type. It directly indicates screw pitch diameter, meaning no need for calculation. ; Stem hole ?: 37.2; Magnetic stand size (LXWXH): 25; Mass [g]: 200; Range [mm]: 0 – 25; Inch-Metric: Metric; Delivered: Including box, setting standard 60? (from 25 mm upward), key; Digital/Analog: Analog; Graduation: 0,01 mm; Measuring force: 5 – 10 N; Accuracy [?m]: ?(2+L/75) ?m, L = max. range (mm); Measuring spindle: With spindle lock, ?6,35 mm, spindle pitch 0,5 mm; Scale: Thimble and sleeve satin chrome finish, ?18 mm; Spindle feed error [?m]: 3 ; Thread to be measured (Metric/Unified): 1-1,75 mm / 24-14 TPI;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/01.02.01.048/Screw%20Thread%20Micrometer/$catalogue/mitutoyoData/PR/125-103/index.xhtml
