Ratchet Thimble Micrometer

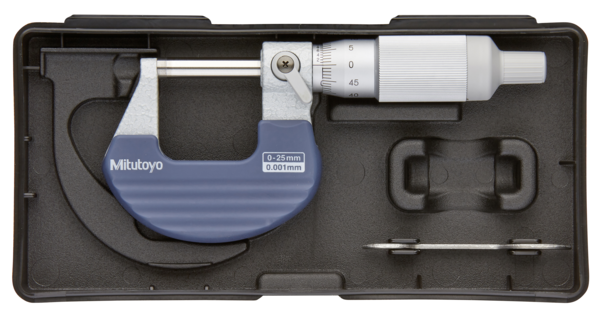

Full Description: A Mitutoyo non-digital micrometer with a combined ratchet thimble/speeder to guarantee repeatable measurement. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. High resolution provided by a vernier scale on sleeve.; Mass [g]: 180; Range [mm]: 0 – 25; Inch-Metric: Metric; Delivered: Including box, key, setting standard (from 25 mm upward), certificate of inspection; Digital/Analog: Analog; Graduation: 0.001 mm; Flatness: 0.6 ?m; Max. Permissible Error J MPE: ?2 ?m; Parallelism: 2 ?m; Measuring spindle: With spindle lock, ?6.35 mm, spindle pitch 0.5 mm; Measuring face: Carbide-tipped, micro-lap finish; Scale: Thimble and sleeve satin chrome finish, ?18 mm;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/01.02.01.04/Ratchet%20Thimble%20Micrometer/$catalogue/mitutoyoData/PR/102-707/index.xhtml
