Point Micrometer with Hardened Tip

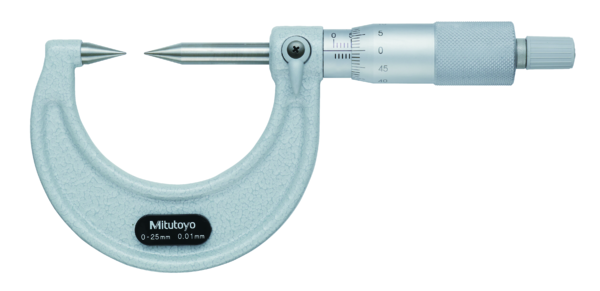

Full Description: A Mitutoyo non-digital micrometer provided with pointed spindle and anvil to enable measurement within curved, slotted features, such as drilling-bit web thicknesses. A ratchet stop guarantees repeatable measurement.; Stem hole ?: 55.3; Magnetic stand size (LXWXH): 38; Base size (LxWxH): 10; Mass [g]: 205; Range [mm]: 0 – 25; Center point clamping force: 30?; Functions: Hardened steel tip; Inch-Metric: Metric; Delivered: Including box, setting standard (from 25 mm upward), key; Digital/Analog: Analog; Graduation: 0,01 mm; Max. Permissible Error J MPE: ?3 ?m; Accuracy [?m]: ?3; Measuring spindle: With spindle lock, ?6,35 mm, spindle pitch 0,5 mm; Measuring face: Carbide pointed or hardened steel spindle and anvil, measuring point radius 0.3 mm; Scale: Thimble and sleeve satin chrome finish, ?18 mm; Tip: 30?;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/01.02.01.072/Point%20Micrometer%20with%20Hardened%20Tip/$catalogue/mitutoyoData/PR/112-201/index.xhtml
