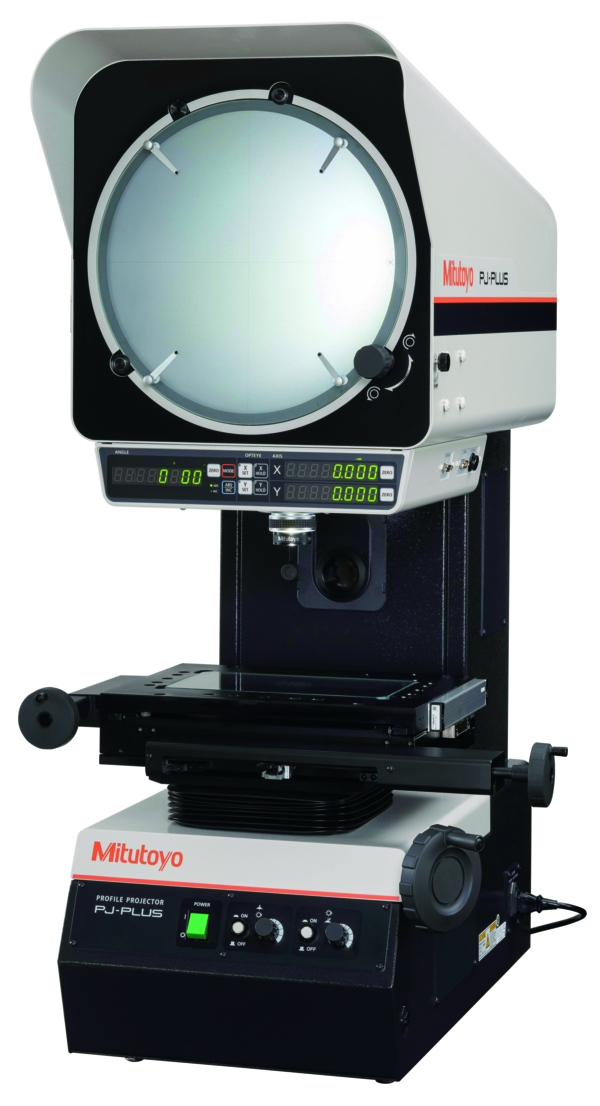

PJ-P2010A

Full Description: The measuring projector that ?can be operated intuitively? even by inexperienced people and also has excellent durability and energy-saving performance thanks to the adoption of an ?LED illumination source? and ?fanless cooling system?. It provides stable dimension and angle measurements in harsher environments, such as manufacturing and processing lines, than can be handled by conventional models.; Stem hole ?: 12BAD760; Mass [kg]: 118; Power supply report: 100 V to 240 V AC, 50 / 60 Hz; Model: PJ-P2010A; Resolution: 0,001 mm or 0,0001 in / 0,001 mm; Quick-release mechanism: X and Y axes; XY stage table top size: 350 x 280; XY stage effective area: 240 x 140; Contor Illumination: White LED light source, Telecentric, Variable brightness adjustment; Max stage loading: 8; Measuring range XY: 200 x 100 mm; Surface illumination: White LED light source, With an adjustable condenser lens, Variable brightness adjustment;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/PJ-PLUS/PJ-P2010A/$catalogue/mitutoyoData/PR/302-802-10/index.xhtml
