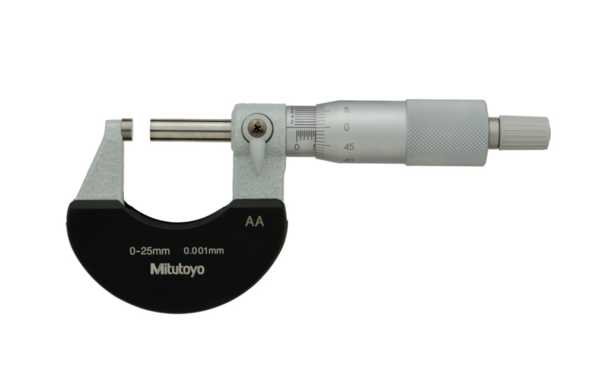

Outside Micrometer with Heat Ins. Plate

Full Description: Cut-away frame behind anvil for measuring in hard to reach places. A ratchet stop or friction thimble guarantees repeatable measurement. ; Magnetic stand size (LXWXH): 2.5; Base size (LxWxH): 26; Mass [g]: 180; Range [mm]: 0 – 25; Remarks: Ratched Stop; Functions: Graduation 0,001 mm is obtained with vernier on sleeve; Inch-Metric: Metric; Delivered: Including box, key, setting standard (from 25 mm upward), certificate of inspection (0-50 mm range); Digital/Analog: Analog; Graduation: 0,001 mm; Flatness: 0,3 ?m; Max. Permissible Error J MPE: ?1 ?m; Parallelism: 2 ?m; Accuracy [?m]: ?1; Min of Measuring force: 5; Max of Measuring force: 10; Measuring spindle: With spindle lock, ?6,35 mm, spindle pitch 0,5 mm; Measuring face: Carbide-tipped, micro-lap finish; Scale: Thimble and sleeve satin chrome finish, ?18 mm;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/Outside%20Micrometer%20with%20Thermally%20Insulating%20Plate/Outside%20Micrometer%20with%20%20Heat%20Ins.%20Plate/$catalogue/mitutoyoData/PR/102-311/index.xhtml
