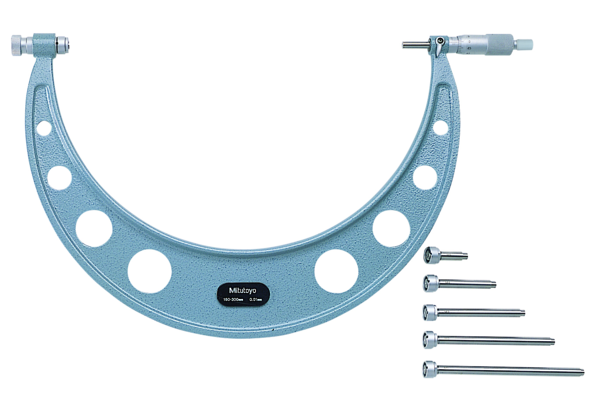

Outside Micrometer Interchangeable Anvil

Full Description: A Mitutoyo non-digital micrometer provided with easily interchangeable anvils to enable a wide measuring range from one instrument. A ratchet stop guarantees repeatable measurement.; Stem hole ?: 18; Mass [kg]: 2.65; Range [mm]: 150 – 300; Inch-Metric: Metric; Delivered: Including box, setting standard, anvils, key; Digital/Analog: Analog; Graduation: 0,01 mm; Measuring force: 5 – 10 N; Flatness: 0,6 ?m; Parallelism: 5 ?m; Accuracy [?m]: ?(4+L/75) ?m, L = max. range (mm); Min of Measuring force: 5; Max of Measuring force: 10; Measuring spindle: With spindle lock, ?6,35 mm (?300 mm) ? 8 mm (>300 mm) , spindle pitch 0,5 mm; Measuring face: Carbide-tipped micro-lap finish spindle and hardened steel anvil; Scale: Thimble and sleeve satin chrome finish, ?18 mm (?300 mm), ?21 mm (>300 mm); Setting standard: 6 (100, 125, 150, 175, 200, 225 mm); Interchangeable anvils: 6; Limit of error: ?8 ?m; Spindle feed error [?m]: 3;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/01.02.01.043/Outside%20Micrometer%20Interchangeable%20Anvil/$catalogue/mitutoyoData/PR/104-136A/index.xhtml
