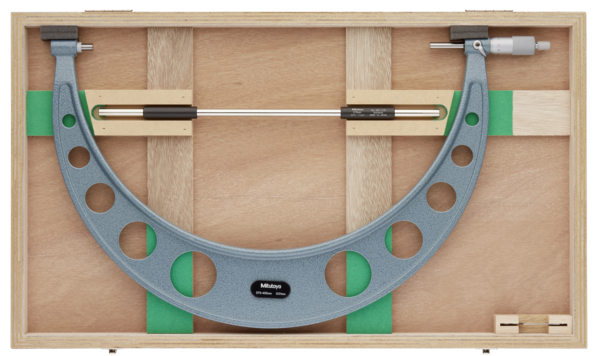

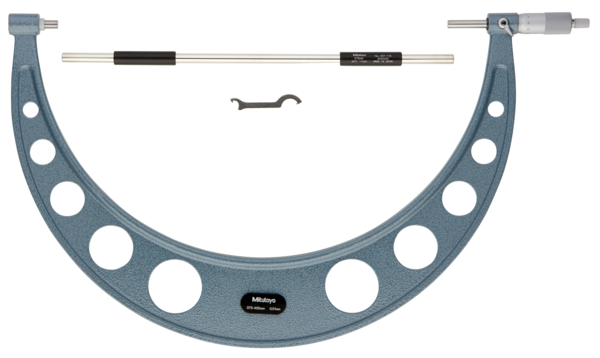

Outside Micrometer Economy Design

Full Description: A Mitutoyo basic, cost effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement.; Stem hole ?: 428; Magnetic stand size (LXWXH): 8; Base size (LxWxH): 28; Mass [g]: 2455; Range [mm]: 375-400; Functions: Graduation 0,01 mm; Inch-Metric: Metric; Delivered: Including box,?setting standard?(from 25 mm upward), key, certificate of inspection (0-50 mm range); Digital/Analog: Analog; Graduation: 0,01 mm; Measuring force: 5 – 15 N; Flatness: 1 ?m; Max. Permissible Error J MPE: ?7 ?m; Parallelism: 6 ?m; Accuracy [?m]: ?7; Min of Measuring force: 10; Max of Measuring force: 15; Measuring spindle: With spindle lock, ?6,35 mm (?300 mm) ? 8 mm (>300 mm) , spindle pitch 0,5 mm; Measuring face: Carbide-tipped, micro-lap finish; Scale: Thimble and sleeve satin chrome finish, ?18 mm (?300 mm), ?21 mm (>300 mm);Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/01.02.01.031/Outside%20Micrometer%20Economy%20Design/$catalogue/mitutoyoData/PR/103-152/index.xhtml
