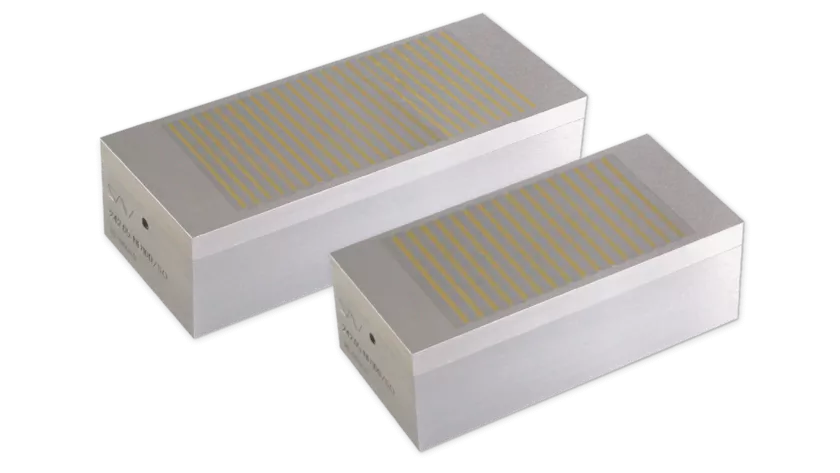

Neodymium magnet clamping blocks – 242.12

APPLICATION

For workpieces which are difficult to chuck, e.g. Ferro-Tic,
tungsten carbide with cobalt content, very small workpieces.
For fast and easy chucking ? also for workpieces with
complicated EDM contours or workpieces which are difficult
to chuck.

DESIGN

Extremely high holding force using a specially developed
process. Sturdy solid steel body. ON/OFF control on the face
side. Larger versions also available with force-actuated control
mechanism on request. Pole divisions made of 4 mm steel and
2 mm brass with NdFeB magnets in the pole gap.

AS STAINLESS VERSION

SAV 242.12
High holding force due to specially developed process.
Sturdy solid steel body. ON/OFF control on the face side.
Precision-ground version.
Housing, ON-switch and pole grid stainless, poles made
of steel.
TECHNICAL DATA

? Rated holding force on inducible steel surface: 180 N/cm2
? Rated holding force: 120 N/cm2
? Magnetic field height: approx. 4 mm
? Wear layer of the pole plate: 3 mm
? Available with adaptation for zero-point workholding syste
