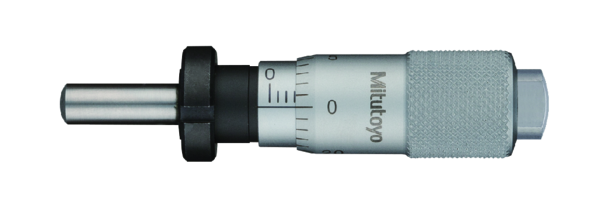

Micrometer Head, Spindle Feed 0,25mm/rev

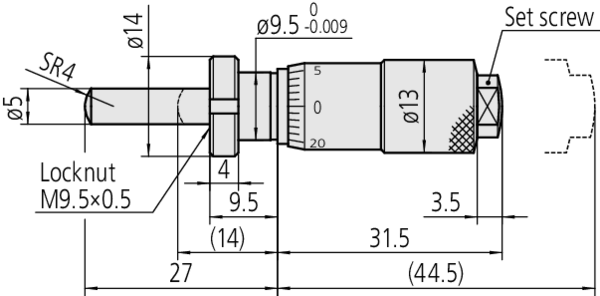

Full Description: These micrometer heads are a standard, small-sized type with a 6,5 mm and 13 mm measuring range. They offer the following benefits: Fine spindle?feed of?0,25 mm/rev for fine adjustment.? ; Stem hole ?: w/ clamp nut; Mass [g]: 35; Range [mm]: 0 – 13; Inch-Metric: Metric; Delivered: With micrometer spanner; Digital/Analog: Analog; Graduation: 0,01 mm; Max. Permissible Error J MPE: ?2 ?m; Measuring face: Hardened steel (> 60 HRC); Scale: Thimble and sleeve satin-chrome plated; Fixture thickness for clamp nut: 6; Spindle end: Spherical (SR4); Stem ?: 9,5 mm; Spindle pitch [mm]: 0.25 ;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/1355219301069/Micrometer%20Head%2C%20Spindle%20Feed%200%2C25mm/rev/$catalogue/mitutoyoData/PR/148-133-10/index.xhtml
