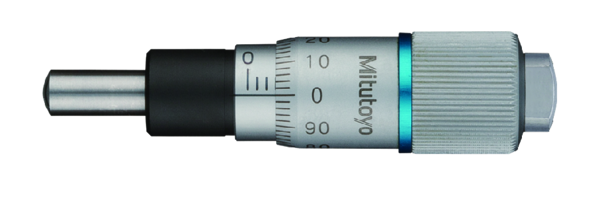

Micrometer Head, Spindle Feed 0,1mm/rev.

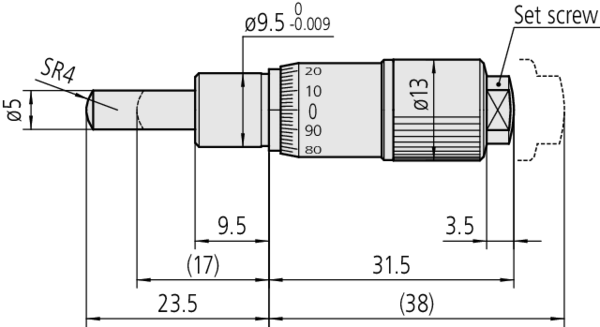

Full Description: These micrometer heads have a very fine spindle feed of 0.1 mm/rev. They offer the following benefits: Small size micrometer heads with extremely fine pitch of 0.1 mm. Ideal for fine adjustment applications in scientific apparatus. ; Stem hole ?: Plain; Mass [g]: 31; Range [mm]: 0 – 6.5; Inch-Metric: Metric; Digital/Analog: Analog; Graduation: 0.002 mm; Max. Permissible Error J MPE: ?2 ?m; Accuracy [?m]: ?2; Measuring face: Hardened steel (> 60 HRC); Scale: Thimble and sleeve satin-chrome plated; Spindle end: Spherical (SR4); Stem ?: 9,5 mm; Spindle pitch [mm]: 0.1 ;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/1355218989412/Micrometer%20Head%2C%20Spindle%20Feed%200%2C1mm/rev./$catalogue/mitutoyoData/PR/148-142-10/index.xhtml
