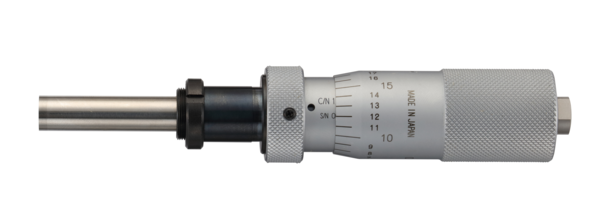

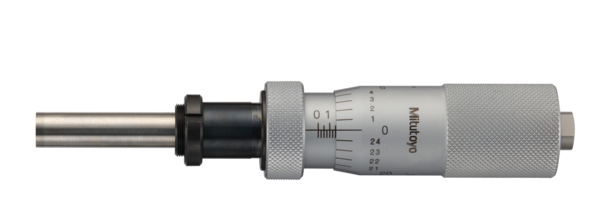

Micrometer Head, Medium-sized Type

Full Description: These micrometer heads are a medium-sized, standard type. They offer the following benefits: 8 mm diameter spindle Extremely sturdy micrometer head with or without a ratchet. ; Stem hole ?: w/ clamp nut; Mass [g]: 165; Functions: With spindle lock; Inch-Metric: Inch; Delivered: With micrometer spanner; Digital/Analog: Analog; Graduation: 0,001″; Max. Permissible Error J MPE: ?0,0001″; Measuring face: Carbide tipped (>90 HRA); Scale: Thimble and sleeve satin-chrome plated; Range [inch]: 0 – 0,1; Fixture thickness for clamp nut: 15.5; Spindle end: Flat; Stem ?: 0,5″; Special features: w/o ratchet stop;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/1304334069546/Micrometer%20Head%2C%20Medium-sized%20Type/$catalogue/mitutoyoData/PR/151-242-10/index.xhtml
