M Plan Apo HR 5X
High resolution objective for bright-field observaton in visible range
15,790.72lei 17,545.24lei INC. TVA

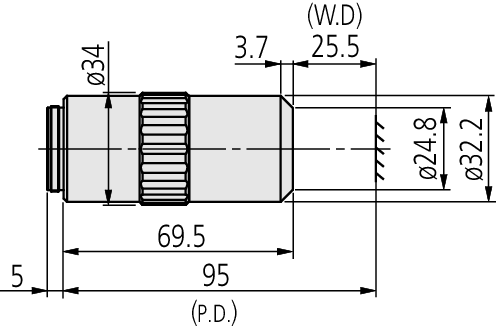

Full Description: Features High Resolution Infinity Corrected Breight Field Inspection High Quality Plan Apochromat Flat Image Surface over Entire Field of View ; Thread Arm/Base: 1.3; Clamping force (vertical): 40; Mass [g]: 285; Remarks: pupil diameter 16.8; Functions: M Plan Apo HR for Bright Field Observation Compatible with microscope types VMU / FS-70 / MF-U / Hyper MF-U Note: These objectives offer extra-high resolving power.; Model: M Plan Apo HR 5X; Magnification: 5x; W.D.: 27; D.F.: 6.2; Dimensions [mm]: 32.2-34; Finite/Infinite: Infinite; Image Field: visible: 30 mm; N.A.: 0.21; Specifications: MI924; Working distance: In Air: 25.5 mm; Tube lens: 200; Focal length: 40; P.D.: 95; FOV 1: ?4.8; FOV 2: 0,96 x 1,28; Corrected Wave Length: 436-656; Type of Lens: c: HR;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/05.04.02/M%20Plan%20APO%20HR%205X/$catalogue/mitutoyoData/PR/378-787-16/index.xhtml
