M Plan Apo HR 10X

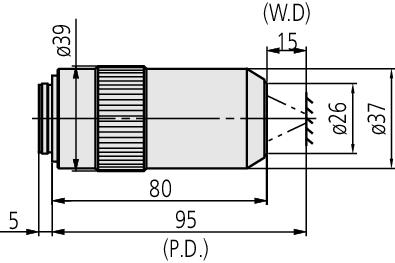

Full Description: Features High Resolution Infinity Corrected Breight Field Inspection High Quality Plan Apochromat Flat Image Surface over Entire Field of View ; Thread Arm/Base: 0.7; Clamping force (vertical): 20; Mass [g]: 455; Remarks: pupil diameter 16.8; Functions: M Plan Apo HR for Bright Field Observation Compatible with microscope types VMU / FS-70 / MF-U / Hyper MF-U Note: These objectives offer extra-high resolving power.; Model: M Plan Apo HR 10X; Magnification: 10x; W.D.: 15; D.F.: 1.6; Dimensions [mm]: 37-39; Finite/Infinite: Infinite; Image Field: visible: 30 mm; N.A.: 0.42; Specifications: MI924; Working distance: In Air: 15 mm; Tube lens: 200; Focal length: 20; P.D.: 95; FOV 1: ?2.4; FOV 2: 0,48 x 0,64; Corrected Wave Length: 436-656; Type of Lens: c: HR;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/05.04.02/M%20Plan%20APO%20HR%2010X/$catalogue/mitutoyoData/PR/378-788-15/index.xhtml
