M Plan Apo 1X

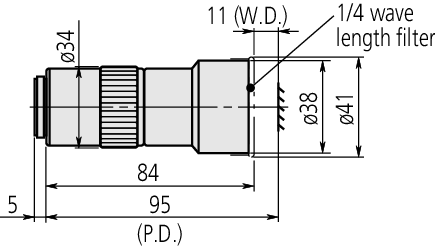

Full Description: Features Long Working Distances Infinity Corrected Bright Field Inspection High Quality Plan Apochromat Design Flat Image Surface over Entire Field of View ; Thread Arm/Base: 11; Clamping force (vertical): 200; Mass [g]: 300; Remarks: 11.2; Functions: M Plan Apo for Bright Field Observation Compatible with microscope types VMU / FS-70 / MF-U / Hyper MF-U Note: To avoid optical flare in use of coaxial illumination 1x objectives should be used togehter with polarisation unit on microscope and attached 1/4 wavelength plate.; Model: M Plan Apo 1X; Magnification: 1x; W.D.: 11; D.F.: 440; Dimensions [mm]: 38-34; Finite/Infinite: Infinite; Image Field: visible: 30 mm; N.A.: 0.025; Specifications: MI924; Working distance: In Air: 13/11 mm; Tube lens: 200; Focal length: 200; P.D.: 95; FOV 1: ?24; FOV 2: 4,8 x 6,4; Corrected Wave Length: 436-656;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/05.04.02/M%20Plan%20Apo%201X/$catalogue/mitutoyoData/PR/378-800-12/index.xhtml
