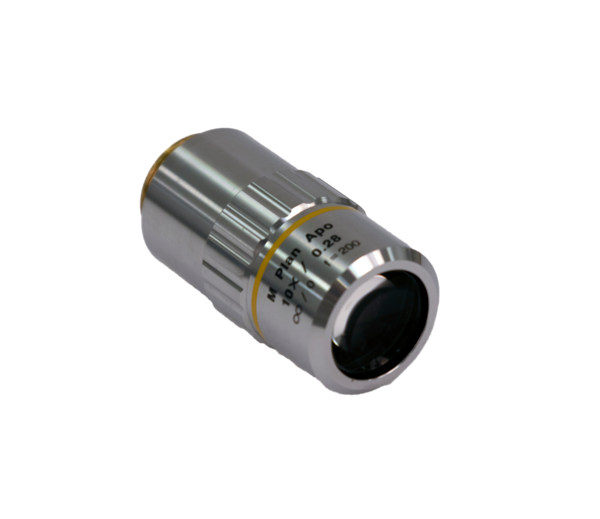

M Plan Apo 10X

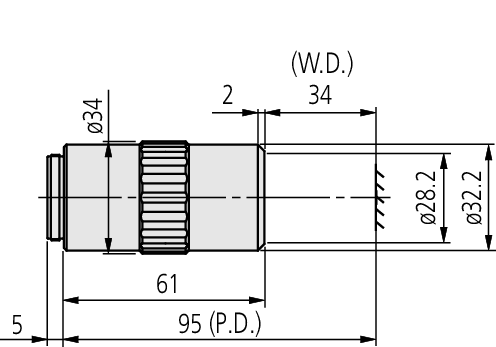

Full Description: Features Long Working Distances Infinity Corrected Bright Field Inspection High Quality Plan Apochromat Design Flat Image Surface over Entire Field of View ; Thread Arm/Base: 1; Clamping force (vertical): 20; Mass [g]: 240; Remarks: 11.2; Functions: M Plan Apo for Bright Field Observation Compatible with microscope types VMU / FS-70 / MF-U / Hyper MF-U Note: To avoid optical flare in use of coaxial illumination 1x objectives should be used togehter with polarisation unit on microscope and attached 1/4 wavelength plate.; Model: M Plan Apo 10X; Magnification: 10x; W.D.: 34; D.F.: 3.5; Dimensions [mm]: 32.2-34; Finite/Infinite: Infinite; Image Field: visible: 30 mm; N.A.: 0.28; Specifications: MI924; Working distance: In Air: 34 mm; Tube lens: 200; Focal length: 20; P.D.: 95; FOV 1: ?2.4; FOV 2: 0,48 x 0,64; Corrected Wave Length: 436-656;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/05.04.02/M%20Plan%20APO%2010X/$catalogue/mitutoyoData/PR/378-803-3/index.xhtml
