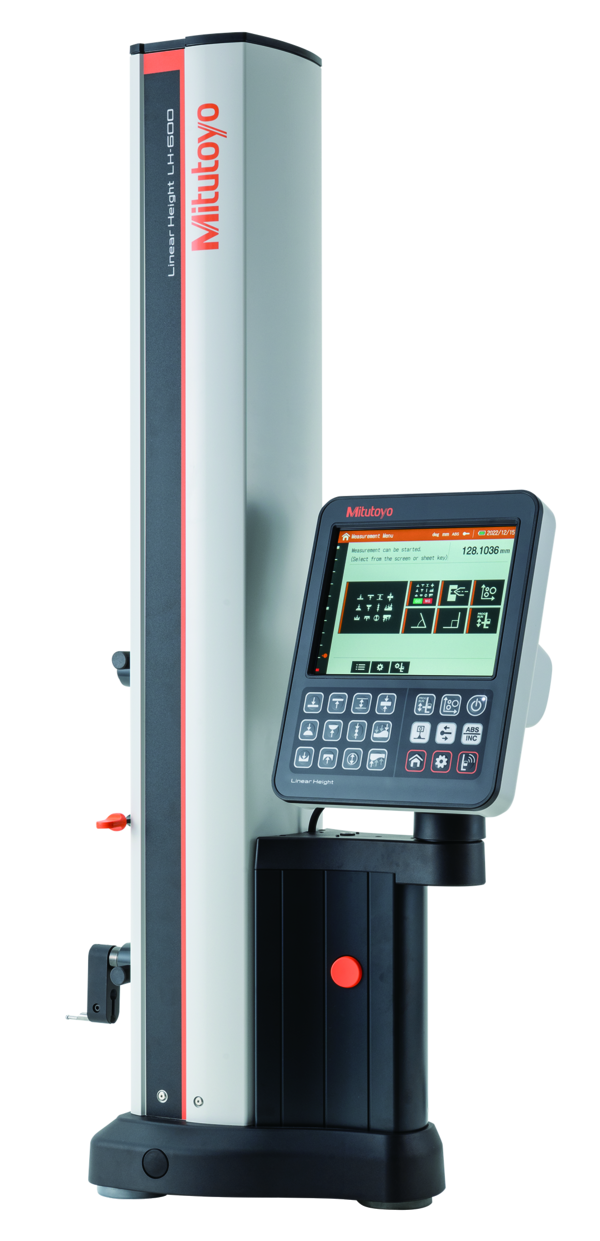

Linear Height LH-600F, Metric/Inch

Full Description: The Linear Heigth LH-600F/FG is a high-end 2D height-measuring instrument exhibiting the perfect combination of intuitive operation, multifunctionality and extraordinary accuracy.

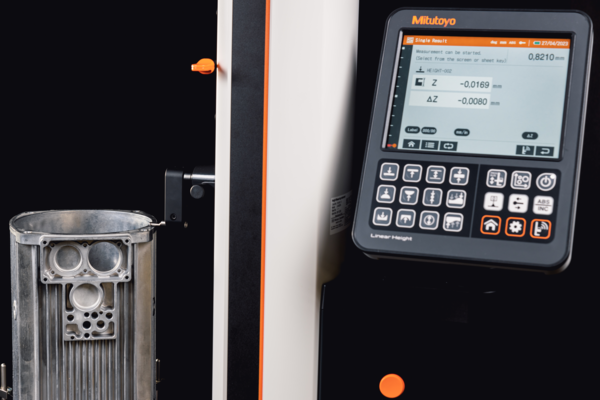

Measurement operations can be performed by using th hybrid controller box with a touch screen and integrated sheet keyboard
It is capable of measuring with a digital step of 0.1?m
Excellent accuracy of (1.1 + 0.6L/600) ?m
Bidirectional Digimatic data output (Digimatic S1)
Measurement results can be printed from a receipt printer or Digimatic Printer (DP-1VA) and sent to a PC via wireless communication, USB cable or USB -Stick
Pneumatic drive mechanism
Automatic running of pre-learned part programs
Excellent visualization of GO/?NG tolerance comparisons?
Independent operation with rechargeable battery
LH-Communication Tool Software available online free of charge

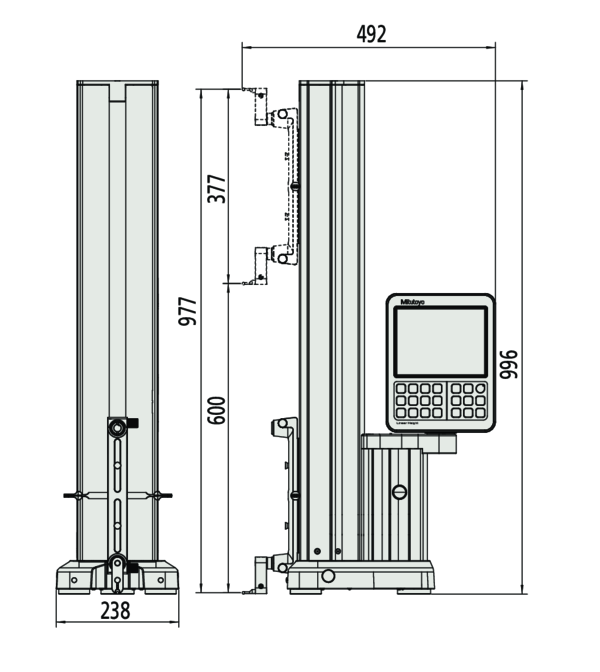

Dimension L 492 mm x W 238 mm x H 996 mm

*power cable (02ZAA021) needed, please order separately; Mass [kg]: 26.1; Range [mm]: 0-977; Remarks: Without power grip; Inch-Metric: Metric/Inch; Digital/Analog: Digital; Measuring force: 1 N; R MPE (Repeatability): (2?) Plane : 0,4 ?m (2?) Bore : 0,9 ?m; Accuracy [?m]: ?(1,1 + 6L/6000) ?m L = length (mm); Scale: Photoelectric INC encoder, STVC-20Z (8.1×10-6/K); Digital step: 0,0001/ 0,001/ 0,01/ 0,1 mm or 0,000001/ 0,00001/ 0,0001/ 0,001″; Display: 8.4″ SVGA touch screen (800×600 dot, LED, with back lightning); Power consumption: Max. 49.9 W ; Interface: Digimatic S1 bidirectional (for wireless data transmission, Digimatic data transmission), RS-232C (for receipt printer), USB-B (for PC), UAB-A (for memory stick); Perpendicularity table-stem hole: 5 ?m (after compensation); Operation temperature: 5-40 ?C; Drive method: Motor-driven (5, 10, 15, 20, 25, 30, 40 mm/s: 7 steps)/ manual; Air floating: Full-floating (for moving), semi floating (for scanning measurement); Battery operation time: Approx. 4 hours; Slider stroke: 600 mm; Adjustment range of display unit orientation: Tilt direction: 0-40?, swivel direction: -30-180?; Airbone noise [dB(A)]: 70; Airborne noise: 70dB(A); Battery charging time: Appr. 3,5 h; Number of commands per part program: 100; Number of measuring results per part program: 30000; Number of measuring results (all programs): 100,000; Number of stored part programs: 50; Operating humidity: 20-80% RH (no condensation); Straightness: 4 ?m (mechanical);Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/01.03.05.032/Linear%20Height%20LH-600F%2C%20Metric/Inch/$catalogue/mitutoyoData/PR/518-360-13/index.xhtml
