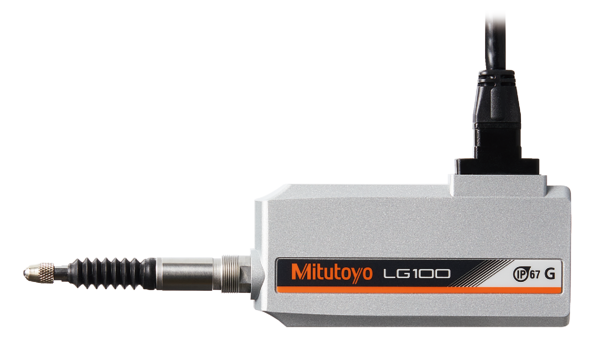

Linear Gauge LG100-110 10 mm

Full Description: The LG100 is a very robust and economical linear gauge for in-line use and automatic machines, in combination with the EJ Counter. EH-counters can be used as well.

The advanced construction of the plunger guidance assembly makes it very resistant to external shocks and vibrations.
Its differential square-wave signal output allows for a wide range of applications.
Long-lasting due to linear ball-bearings in the spindle unit.
Repeatability of 0.3 ?m.
Narrow range accuracy: 0.5 ?m (20 ?m range).
Operation temperature range: 0 – 50?C.
; Mass [g]: 260; Range [mm]: 0 – 10; Power supply report: DC 5 V ?0.2 V ripple voltage200 mVpp max; Contact point: ?3 mm carbide ball,
thread: M 2.5 x 0.45; Measuring force: 1.4 N with spindle down, 1.3 N with spindle horizontal, 1.2 N with spindle upwards; Accuracy [?m]: (1.5+L/50) ?m L=measured length in mm; Stem ?: 8 mm; Resolution: 1; Max. response speed [mm/s]: 1500 mm/s; Resolution [mm]: 0,001 ?m ; Signal pitch: 4; Output signal: 90? phase difference,
differential square wave
(RS-422 equivalent);Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/Linear%20Gauge%20LG100%20Series/Linear%20Gauge%20LG100-110%2010%20mm/$catalogue/mitutoyoData/PR/542-190/index.xhtml
