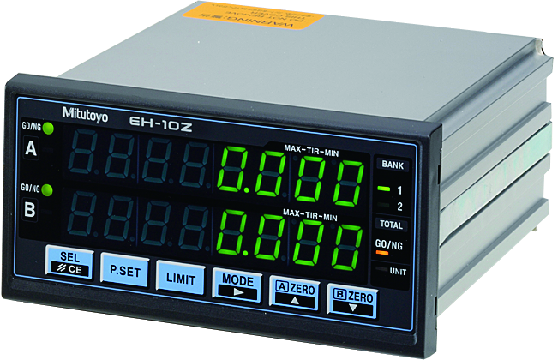

Linear Gauge Counter EH-102Z

Full Description: for Linear Gauge LGF; Mass [g]: 800; Resolution: 0,0001/0,001/0,01; Mm?/?inch switching: Yes; ON/OFF: Yes; PRESET: Yes; Input signal type: Differential square-wave with reference point; External PRESET / ZERO: Yes; Applicable gauge: LGF-Z with reference point, LG100 with connector adapter plug 21HZA196; Gauge inputs: 2; BCD output: Yes; External HOLD: Yes; Max. input frequency: 2,5 MHz (2-phase square wave), response speed depends on gauge specification; Counting direction switchable: Yes; Diameter display: Yes; Digimatic data output: Yes; MAX?/?MIN?/?Difference measurement: Yes; RS link: Yes; Extern tolerance set (when a PC is used): Yes; ZERO SET: Yes; Digimatic data input: Yes;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/1306825911718/Linear%20Gauge%20Counter%20EH/$catalogue/mitutoyoData/PR/542-073D/index.xhtml
