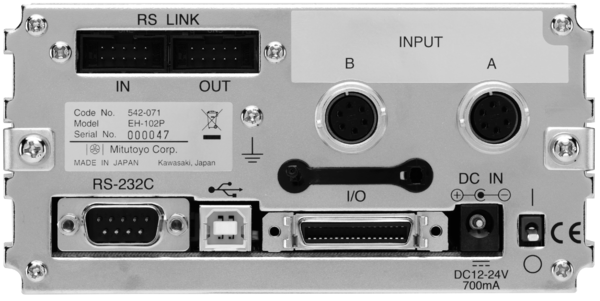

Linear Gauge Counter EH-102P

Full Description: Multi-functional Counter The standard RS-232C and USB interfaces allows easy communication with an external PC (the USB can only be used with SENSORPAK). The built-in networking function allows you to easily create a multi-point measuring system (RS link, max. 10 Counter). The 2-gauge input type?can?calculate additions and subtractions between two gauges. ; Mass [g]: 800; Power supply report: Via AC Adapter (12-24 V DC, 700 mA No. 527428 Standard Accessories) ; Functions: (need 21HZA195); Display: 8 digit and a negative [-] sign, LED (green) ; Resolution: 0,0001/0,001/0,01; Mm?/?inch switching: Yes; ON/OFF: Yes; PRESET: Yes; Number of inputs: 2 (Double display); Input signal type: Differential square-wave; External PRESET / ZERO: Yes; Applicable gauge: LGF, LGK, LGB, LG, LGM, LGH (excluding LGF-Z with reference point, LGH with 0.01 ?m resolution), LG100 with connector adapter plug 21HZA195; Gauge inputs: 2; BCD output: Yes; RS-Link: Up to six EH counters may be connected via one RS-232C or USB port. (daisy chain); External HOLD: Yes; Max. input frequency: 2,5 MHz (2-phase square wave), response speed depends on gauge specification; Counting direction switchable: Yes; Diameter display: Yes; Digimatic data output: Yes; MAX?/?MIN?/?Difference measurement: Yes; RS link: Yes; Extern tolerance set (when a PC is used): Yes; ZERO SET: Yes;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/1306825911718/Linear%20Gauge%20Counter%20EH/$catalogue/mitutoyoData/PR/542-071D/index.xhtml
