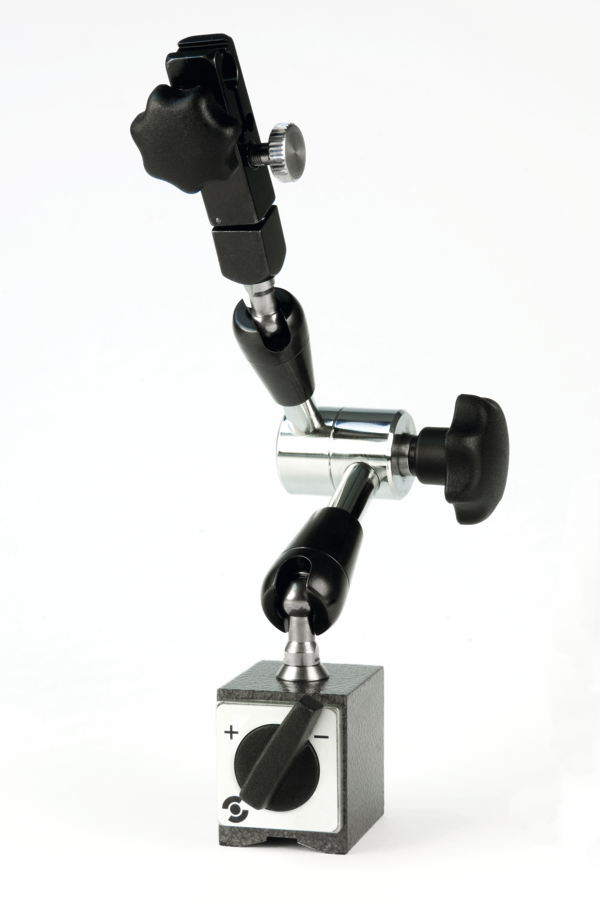

Full Description: With mechanical locking system and fine adjustment Allows a dial indicator to be fixed in any position. ; Stem hole ?: 8 mm, dovetail; Magnetic stand size (LXWXH): 36 x 30 x 35; Base size (LxWxH): 36 x 30 x 35 mm; Thread Arm/Base: M6 x 1; Clamping device: magnetic; Clamping force (vertical): 300; Fine adjustment: yes; Mass [kg]: 0.45; Total height: 220; Working radius: 130;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/01.05.03/Jointed%20Magnetic%20Stand/$catalogue/mitutoyoData/PR/011533/index.xhtml
