Auxiliary Equipment and Miscellaneous, Indicator Stands, Jointed Magnetic Stands, Mitutoyo, Series 011, Small Tool Instruments and Data Management

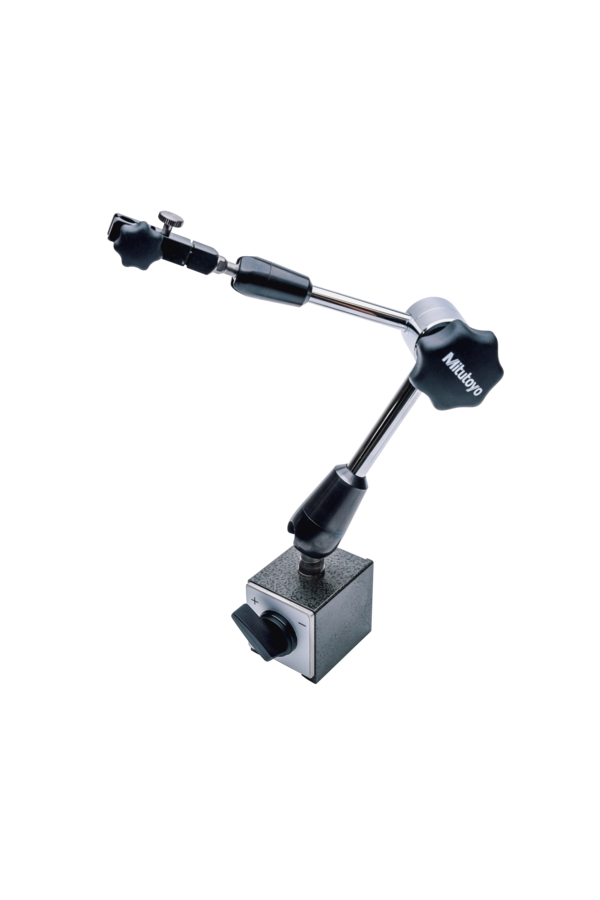

Jointed Magnetic Stand
280mm Working Radius
2,418.30lei 2,687.00lei INC. TVA

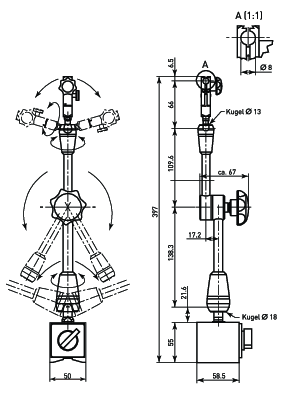

Full Description: The dial indicator can be fixed in any position using the clamping; Stem hole ?: 8 mm, dovetail; Magnetic stand size (LXWXH): 58.5 x 50 x 55; Base size (LxWxH): 58.5 x 50 x 55 mm; Thread Arm/Base: M8 x 1.25; Clamping device: magnetic; Clamping force (vertical): 750; Fine adjustment: yes; Mass [kg]: 1.85; Total height: 397; Working radius: 280;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/01.05.03/Jointed%20Magnetic%20Stand/$catalogue/mitutoyoData/PR/011359/index.xhtml
