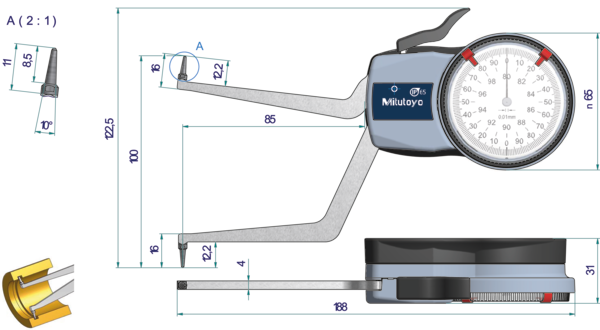

Full Description: A Mitutoyo internal dial caliper gauge designed for use as a comparator, to be set up using a setting ring or micrometer. The caliper is spring loaded and makes point contact at constant measuring force.; Stem hole ?: 85; Magnetic stand size (LXWXH): 8.3; Base size (LxWxH): 1.2; Mass [g]: 200; Range [mm]: 80 – 100; Type: Fig. 3; Functions: Measuring contacts: carbide ball ? 1 mm; Inch-Metric: Metric; Graduation: 0.01; Measuring force: 1,1-1,6 ; Accuracy [?m]: 0,03 mm; L (1) : 85; L mm: 85;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/1306327061971/Internal%20Dial%20Caliper%20Gauge/$catalogue/mitutoyoData/PR/209-309/index.xhtml
