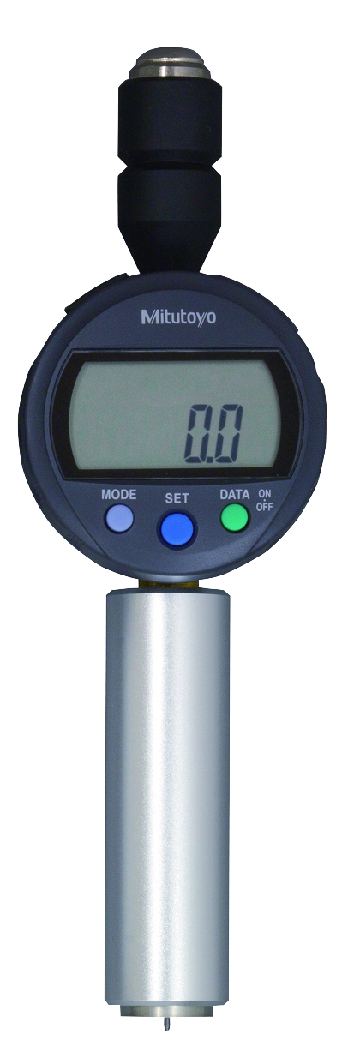

HH-332 Durometer Type A Long/Digital

Full Description: These compact digital/dial durometers in the Shore A scale can test a range of different materials and offer you the following benefits: You can use them for testing the hardness of the materials including soft rubber, elastomers, natural rubber, casting resin, neoprene, polyesters, soft PVC, leather, etc. ? ; Clamping device: Flat; Mass [kg]: 0.31; Subgroup: HH-330, HH-332, HH-334; HH-336, HH-338; Dimensions (WxDxH): 193x60x29.5 mm; Model: HH-332; Number of U-Wave-T units that can be connected: 02AZD790E; Display: Digital; Hardness Value: HA; Connector cable for: HH-300 Series; DP-1VA (264-505): 959149; IT-016U 264-016-10 Hardmatic table: 937387; USB-ITN: 06AFM380F; Indenter protrusion: 2,5 mm; Indenter b: ? 1,25 mm; Pressure foot a: ? 3 mm; Pressure foot f: ? 18 mm; Spring force WE, WA, WD: WA=550+75 HA [mN]; ?: 35?; Shore Scale: Shore A; Indenter d: ? 0,79 mm;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/Hardmatic%20HH-300/Shore%20Durometer%20/$catalogue/mitutoyoData/PR/811-332-10/index.xhtml
