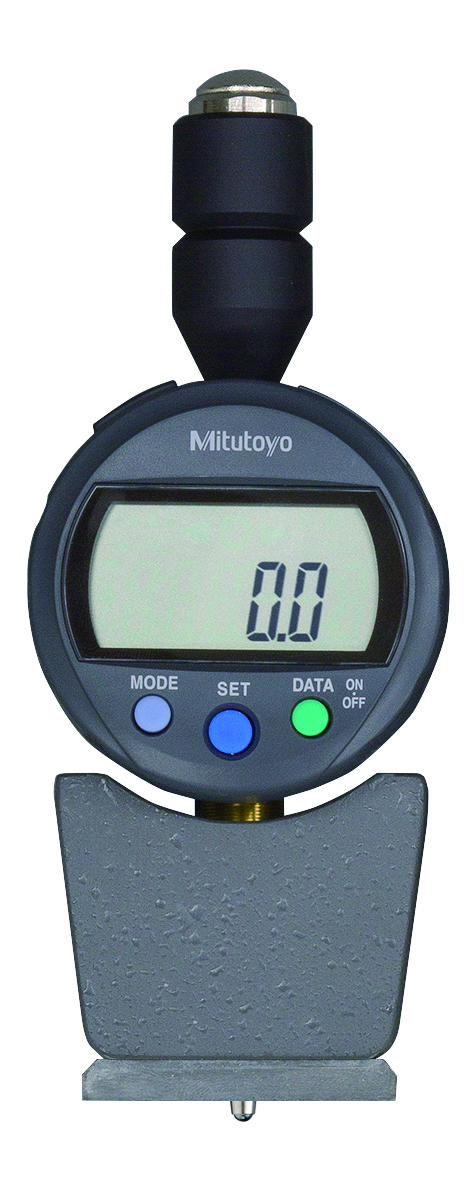

HH-330 Durometer E Compact/Digital

Full Description: These compact digital/dial durometers in the Shore E scale can test a range of different materials and offer you the following benefits: You can use them for testing the hardness of the materials including soft rubber, elastomers, natural rubber, casting resin, neoprene, polyesters, soft PVC, leather, etc. ? ; Clamping device: Flat; Mass [kg]: 0.29; Dimensions (WxDxH): 147 x 59 x 40 mm; Model: HH-330; Number of U-Wave-T units that can be connected: 02AZD790E; Display: Digital; Hardness Value: HE; Connector cable for: HH-300 Series; DP-1VA (264-505): 959149; IT-016U 264-016-10 Hardmatic table: 937387; USB-ITN: 06AFM380F; Indenter protrusion: 2,5 mm; Indenter b: ? 5 mm; Indenter r: ? 2,5 mm; Pressure foot a: ? 5,4 mm; Pressure foot f: 44 x 18 mm; Spring force WE, WA, WD: WE=550+75 HE [mN]; Shore Scale: Shore E;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/Hardmatic%20HH-300/HH-329%20Durometer%20E%20Compact/Digital/$catalogue/mitutoyoData/PR/811-330-10/index.xhtml
