Caliper Gauges, Dial Tension Gauges, External Dial Caliper Gauges, External Dial Caliper Gauges Metric, Indicators and Caliper Gauges, Mitutoyo, Small Tool Instruments and Data Management, Thickness Gauges
External Dial Caliper Gauge
0-20mm, 0,01mm
3,929.00lei 4,366.00lei INC. TVA

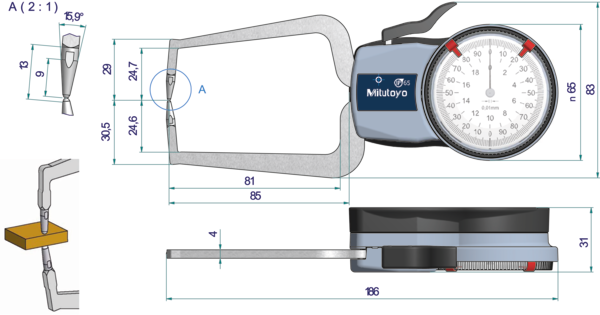

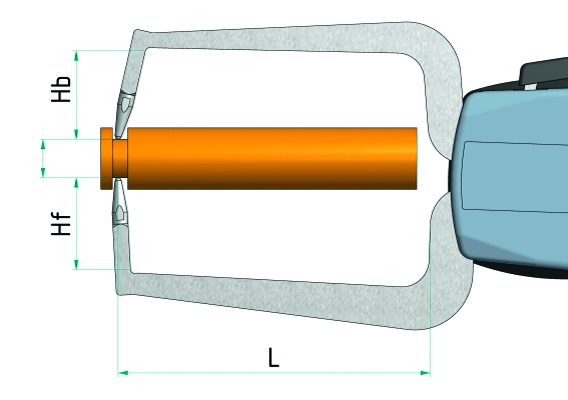

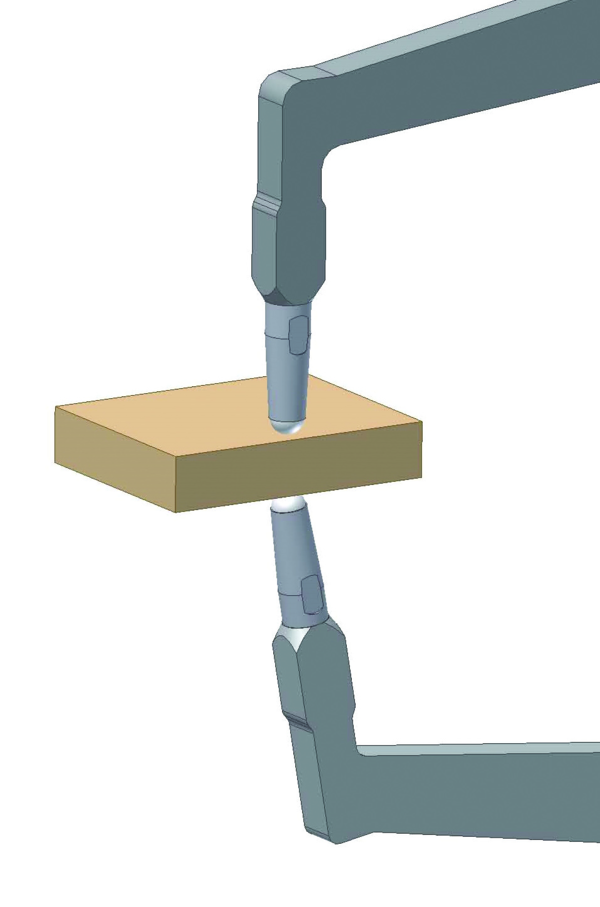

Full Description: A Mitutoyo external dial caliper gauge. The caliper is spring loaded and makes point contact at constant measuring force.; Stem hole ?: 80; Mass [g]: 200; Range [mm]: 0 – 20; Type: Fig. 3; Functions: Measuring contacts: carbide ball ? 1,5 mm / bevel radius 0,4 mm; Inch-Metric: Metric; Graduation: 0.01; Measuring force: 1,1-1,6; Accuracy [?m]: 0,03 mm; L (1) : 80; Hb: 24.7; Hf: 2.5;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/1305632905288/External%20Dial%20Caliper%20Gauge/$catalogue/mitutoyoData/PR/209-406/index.xhtml
