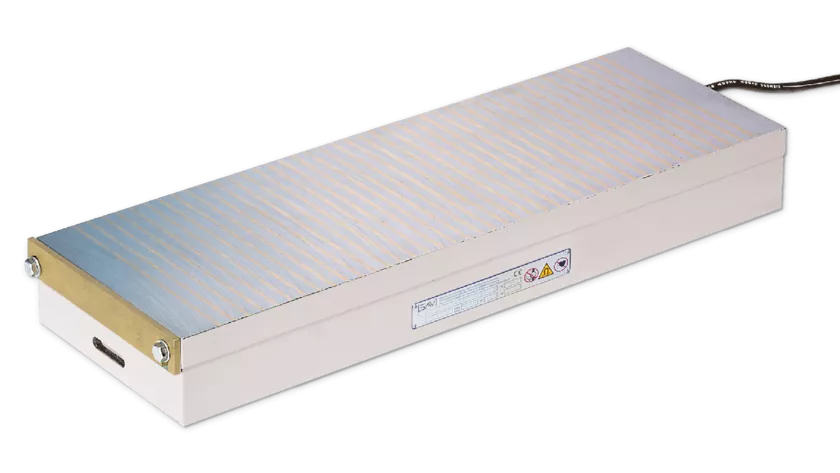

ELECTRO PERMANENT MAGNETIC CHUCKS – 13 MM

ELECTRO PERMANENT MAGNETIC CHUCKS With continuous transverse pole pitch P = 13 mm, 18 mm and 25 mm

DESIGN
? Solid pole plate with 13 mm
? ?True? N/S pole spacing
? Switch-off using demagnetising cycle
? Electro permanent magnetic system for absolute safety in
case of power failure.

? High accuracy thanks to pole plates bolted in a narrow grid
? Reinforced systems for high wear possible on request
? 8 mm wear layer on the pole plate
? Pole plate can be replaced when worn
? Chucking slots on both face sides
? Length over 1000 mm with through holes for fastening upon agreement
or machine table
? Robust and water-tight
? Protection rating IP 65
RATED HOLDING FORCE
90 N/cm2
, with P = 13 mm pole pitch
Controllable with control unit.
RATED VOLTAGE, RECOMMENDED
210 V IMP up to size A x B = 600 x 400
360 V IMP above size A x B = 600 x 400
APPLICATION
For universal chucking of workpieces with high precision.
? For main workpiece axis perpendicular to the
pole pitch
? For workpieces up to min. thickness x:
4.5 mm with P = 13 mm
6.0 mm with P = 18 mm
8.5 mm with P = 25 mm
? For flat workpieces min. a:
25 mm x 25 mm with P = 13 mm
32 mm x 32 mm with P = 18 mm
45 mm x 45 mm with P = 25 mm
SCOPE OF DELIVERY
? Stop bar on one short and one long side
? 3 m connecting cable on right short side, rear
? On request with water-tight heavy-duty power connector
? Larger magnetic chucks from 25 kg are provided with lifting
lugs for transport
? Control and hand remote unit not in the scope of delivery
? Clamps
