Disc Micrometer, Non-Rotating Spindle

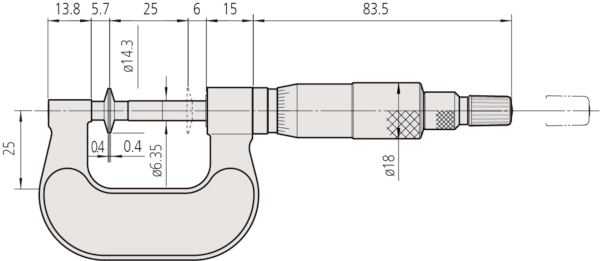

Full Description: This Disc Micrometer has a non-rotating spindle and allows you measure a range of different materials. It offers you the following benefits: It features a non-rotating spindle and disc-shaped measuring surfaces. Measuring the root tangent length of spur and helical gears Measurable range of gear pitch: 0,5-6 module It?s suitable for measuring materials such as felt, rubber, cardboard and fabric. ; Magnetic stand size (LXWXH): 5.7; Base size (LxWxH): 25; Mass [g]: 230; Range [mm]: 0 – 25; Inch-Metric: Metric; Delivered: Including box, setting standard (from 25 mm upward), key; Digital/Analog: Analog; Graduation: 0.01mm; Measuring force: 8.02 N ? 0.8 N; Max. Permissible Error J MPE: ?4 ?m; Parallelism: 3 ?m; Accuracy [?m]: ?4; Measuring spindle: ?6,35 mm, non-rotating, spindle pitch 0,5 mm; Measuring face: Hardened steel, micro-lap finish; Scale: Thimble and sleeve satin chrome finish, ?18 mm;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/01.02.01.0642/Disc%20Micrometer%2C%20Non-Rotating%20Spindle/$catalogue/mitutoyoData/PR/169-101-10/index.xhtml
