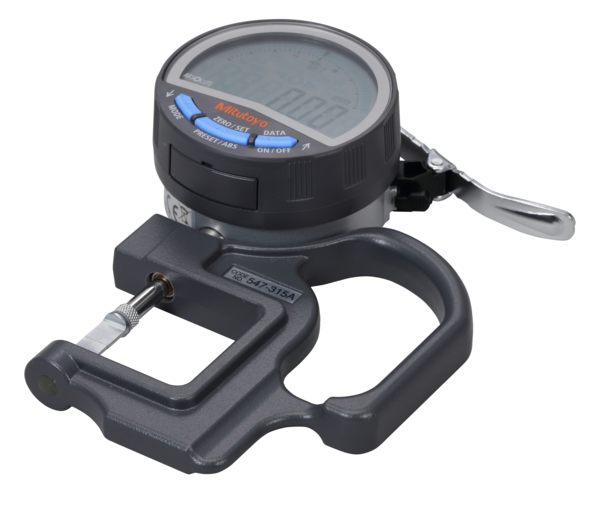

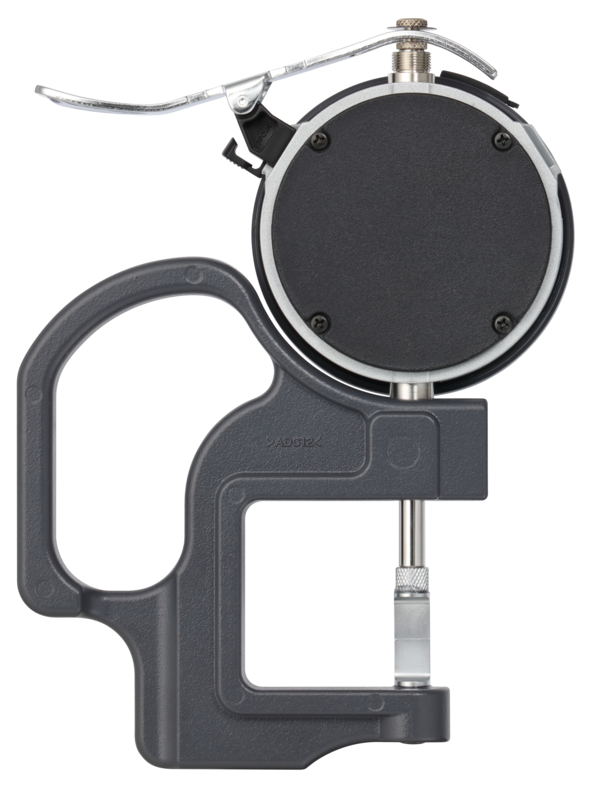

Digital Thickness Gauge, Blade Type

Full Description: This ABSOLUTE Digimatic Thickness Gauge enables you to measure film, paper, etc., with flat contact points.

Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.
; Mass [g]: 260; Range [mm]: 0 – 10; Remarks: Electrostatic capacitance type absolute linear encoder; Power supply report: 1 battery CR2032 (3V); Type: Blade steel contact point; Inch-Metric: Metric; Delivered: Including box; Digital/Analog: Digital; Digital step: 0.01 mm; Display: LCD, character height 11 mm; Low voltage alarm: Low voltage, setting errors, sensor error, display overflow a.s.o.; Max. response speed [mm/s]: Unlimited; Protection: IP42; Measurement frequency (MAX/MIN/RANGE): Yes; Digital step switchable: No; Indicator No.: 543-710BS; Max. measuring depth: 30 mm;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/1303825829093/Digital%20Thickness%20Gauge%2C%20Blade%20Type/$catalogue/mitutoyoData/PR/547-315A/index.xhtml
