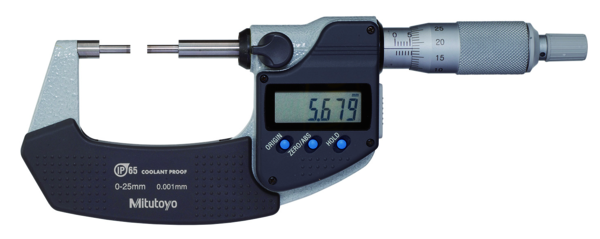

Digital Spline Micrometer IP65

Full Description: This Digimatic Spline Micrometer makes it easy for you to measure grooves and shaped parts. It offers you the following benefits:

Anvil and spindle are of small diameter for measuring splined shafts, slots and keyways.
Excellent resistance against water and dust (IP65 protection level) enables this micrometer to be used in machining situations that include splashing coolant fluid.
; Stem hole ?: 58.2; Magnetic stand size (LXWXH): 32,5; Base size (LxWxH): 7.3; Mass [g]: 330; Range [mm]: 0 – 25; Battery life: Approx. 2,4 years; Inch-Metric: Metric; Delivered: Including box,?setting standard?(from 25 mm upward), key, 1 battery; Digital/Analog: Digital; Flatness: 0,3 ?m; Max. Permissible Error J MPE: ?2 ?m; Parallelism: 2 ?m; Accuracy [?m]: ?2; Measuring spindle: With spindle lock, ?6,35 mm, spindle pitch 0,5 mm; Measuring face: Carbide-tipped, micro-lap finish, stepped; Scale: Thimble and sleeve satin chrome finish, ?18 mm; Anvil / Spindle: Type A, D=3 mm; Digital step: 0,001 mm; Function lock: Yes;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/01.02.01.069/Digital%20Spline%20Micrometer%20IP65/$catalogue/mitutoyoData/PR/331-251-30/index.xhtml
