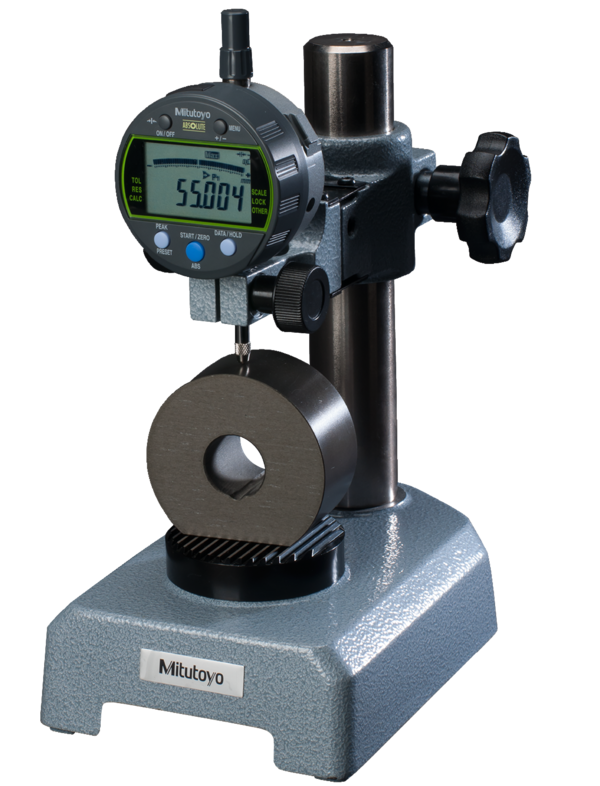

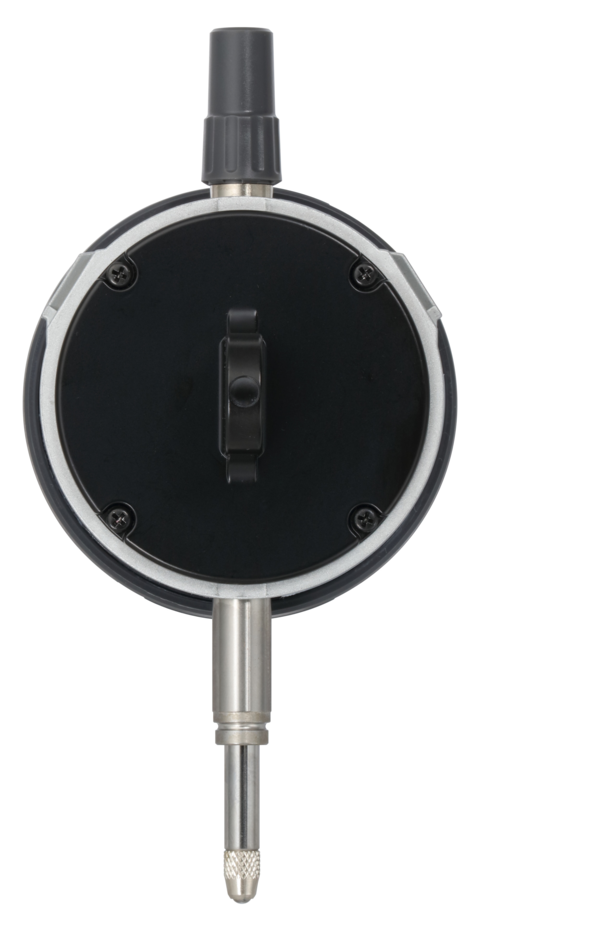

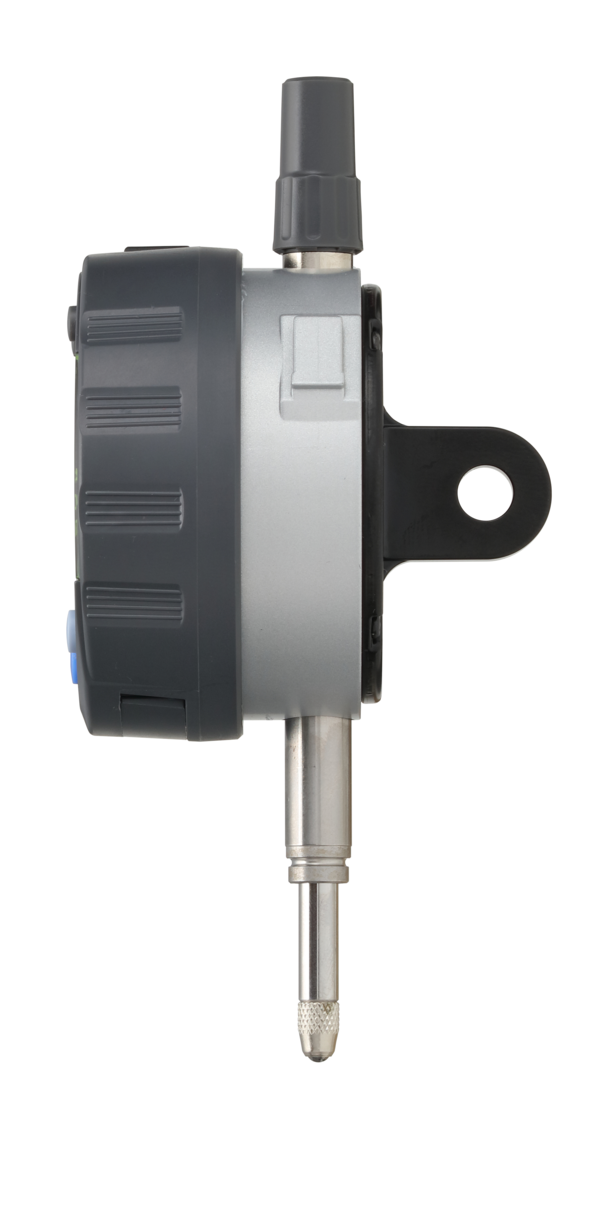

Digital Indicator, Peak Hold ID-C

Full Description: This indicator is the MAX/MIN/RANGE value holding function model
It offers the following benefits:

The MAX/MIN/RANGE (run-out value) can be measured.
A fast measurement frequency mode(detection cycle 20 ms or 50 times/s) is selectable to measure in the peak detection mode (MAX/MIN/RANGE) more reliably.
Easy indicator setup via a setup menu.
Analogue bar graph in the display (12 different scales switchable).
GO/?NG tolerance judgement function.
This indicator enables the use of a calculation function for the measured value Ax.
Coefficient A is freely definable and x = displacement of the plunger.
A USB interface box can be used to set up the indicator from PC via dedicated software.
; Mass [g]: 180; Range [mm]: 12.7; Power supply report: 1 battery CR2032; Battery life: Standard mode: approx. 1 year fast mode: approx. 4.5 month; Type: EN ISO Standard; Inch-Metric: Metric; Delivered: Including CR2032 battery, certificate of inspection; Contact point: Carbide ball, thread: M2.5×0.45; Digital/Analog: Digital; H MPE (Hysteresis): 0.002 mm; R MPE (Repeatability): 0.002 mm; Stem ?: 8 mm; Max. Permissible Error E MPE: 0.003 mm; Digital step: 0.001 mm/0.01 mm; Display: LCD, character height 8 mm, 330? rotatable; Low voltage alarm: Low voltage, ABS composition error, overflow error, setting error; Max. response speed [mm/s]: Unlimited; Protection: IP42; PRESET: Yes; Inch/Metric switchable: No; Max. Permissible Error E MPE (Total Range): 0.003 mm; Measuring force MPL: ?1.5 N; Measurement frequency (MAX/MIN/RANGE): Standard mode: 10 times/s fast mode: 50 times/s (plunger speed max. 50 ?m/s for peak measurement); Digital Scale: Electrostatic capacitance type absolute linear encoder;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/1300442632703/Digital%20Indicator%2C%20Peak%20Hold%20ID-C/$catalogue/mitutoyoData/PR/543-300-10/index.xhtml
