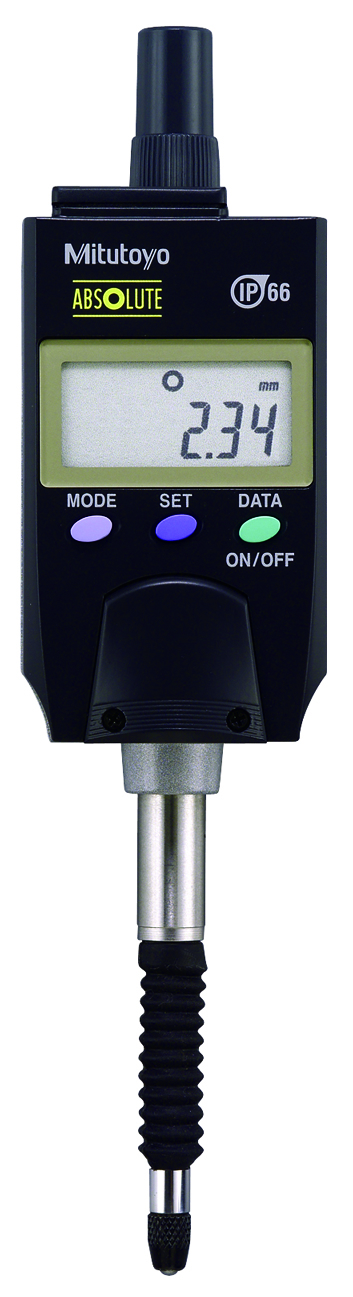

Digital Indicator ID-N, IP66

Full Description: This is a slim back-plunger model that is highly resilient and robust. The ABSOLUTE Digimatic Indicator ID-N offers you the following benefits: It slim body design is ideal for multi-point measurements. The ABSOLUTE sensor means you don?t have to carry out origin setting every time you power it on, saving you time and hassle. It has excellent resistance against water and dust (IP66 protection level) allowing you to use it in machining situations that include splashing coolant fluid. Switchable display orientation gives you more mounting options. You can perform GO/?NG judgement by setting the upper and lower tolerances. ; Range [mm]: 12.7; Remarks: Center lug back is shown opptional; Power supply report: 1 battery SR44; Battery life: Approx. 7000 hours; Type: EN ISO Standard; Features: Slim type ID-N. Proven ABSOLUTE sensor. Rated to IP66 water and dust proofing standard and oil resistance improved. Slim body design is advantageous for multi-point measurements. Improvement in workability with the LCD readout rotation function. Built in tolerance judgement function. Switchable resolution. Waterproof data output connector. Built in hold/preset function. Conventional Digital Measurement ABSOLUTE Digimatic Measurement Absolutely safe, absolutely ingenious: The ABSOLUTE system. All Mitutoyo measuring instruments with this logo incorporate the ingenious ABSOLUTE measurement system. An ABSOLUTE scale only needs to have the origin position set once, which then holds for all future measurements, no matter how often the instrument is switched off. Incremental measurements can be made at any time without losing the origin setting.; Inch-Metric: Metric; Delivered: Including SR44 battery, certificate of inspection; Contact point: Carbide ball, thread: M2.5×0.45; Digital/Analog: Digital; H MPE (Hysteresis): 0.02 mm; R MPE (Repeatability): 0.01 mm; Accuracy [?m]: Refer to the list of specifications (excluding quantizing error); Scale: Capacitance type, ABSOLUTE linear encoder; Stem ?: 8 mm; Max. Permissible Error E MPE: 0,02 mm; Digital step: 0.01 mm; Display: LCD, character height: 6.2 mm; Low voltage alarm: Low voltage, counting value composition error, overflow error, tolerance limit setting error; Max. response speed [mm/s]: Unlimited; Protection: IP66; Max. Permissible Error E MPE (Total Range): 0.02 mm; Measuring force MPL: ?2.5 N; Digital Scale: Electrostatic capacitance type absolute linear encoder;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/1302529496546/Digital%20Indicator%20ID-N%2C%20IP66/$catalogue/mitutoyoData/PR/543-570/index.xhtml
