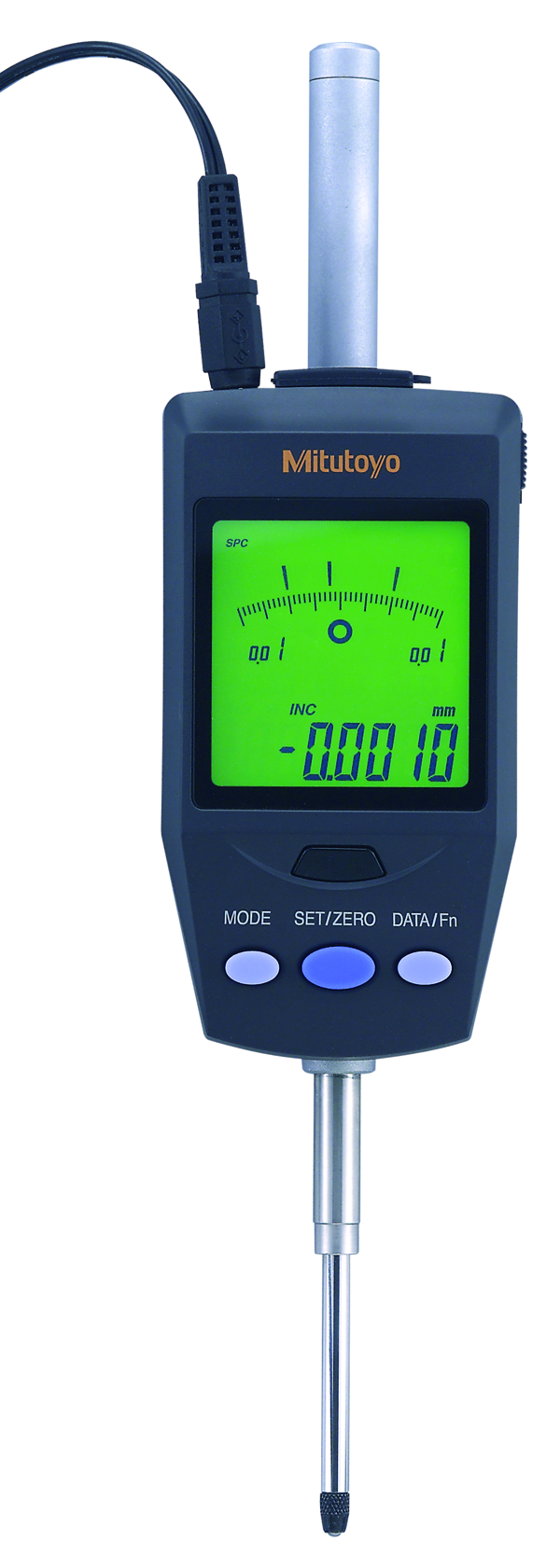

Digital Indicator ID-H, CEE AC-Adapter

Full Description: This is a superior multi-function indicator that gives you high accuracy and high resolution of 0.0005 mm. The Digimatic Indicator ID-H offers you the following benefits:

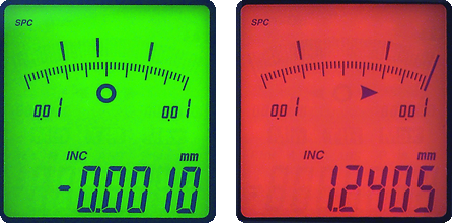

2-colour LCD backlight (green and red) provides you with visual GO/?NG tolerance judgement and analogue bar-graph display.
You can display the maximum, minimum or range (runout value).

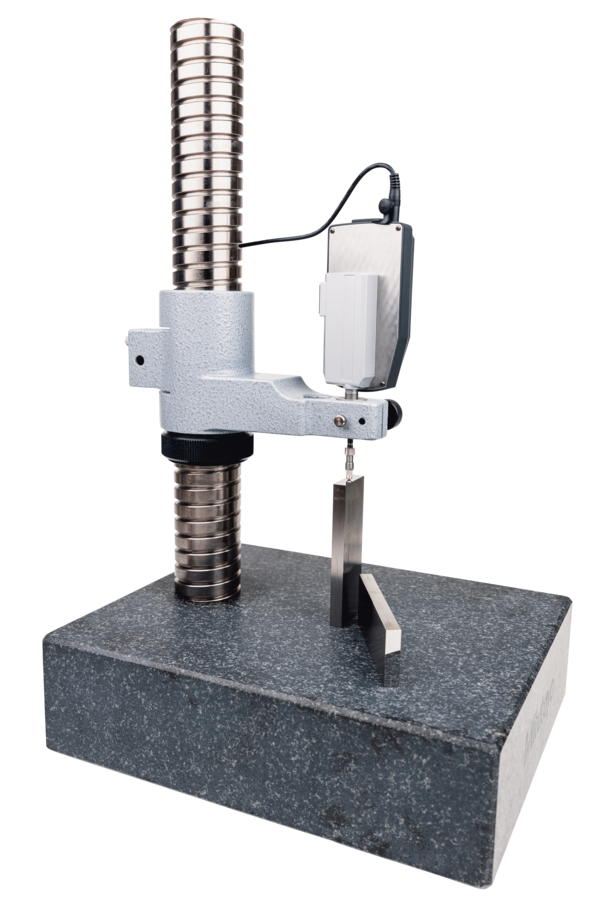

Lifting mechanism over 30 mm with cable release (optional).
You can carry out zero-setting and presetting with the optional remote controller, without having to touch the indicator.
The remote control system can be implemented in advance with the built-in RS-232 interface and a PC.
External power supply via AC-Adapter.
; Mass [g]: 290; Range [mm]: 30.4; Remarks: RS-232 input / output is applicable with appropriate connecting cable (1m: 21EAA130 or 2m: 21EAA131); Power supply report: AC adapter 6 V DC, 2A; Type: EN ISO Standard; Inch-Metric: Metric; Delivered: Including AC-Adapter, spindle lifting handle; Contact point: Carbide ball, thread: M2.5×0.45; H MPE (Hysteresis): 0.0015 mm; R MPE (Repeatability): 0.001 mm; Accuracy [?m]: Refer to the list of specifications (excluding quantizing error); Scale: Photoelectric linear encoder; Stem ?: 8 mm; Max. Permissible Error E MPE: 0,0015 mm; Digital step: 0.0005mm/0.001 mm; Display: LCD with red/green backlight, character height 9.5 mm; Low voltage alarm: Counting value composition error, overflow error, tolerance setting error; Resolution: 0.0005mm, 0.001mm; Max. response speed [mm/s]: 1000; Protection: IP30; Data output: Yes; Max. Permissible Error E MPE (Total Range): 0.0015 mm; Measuring force MPL: ?2 N; Digital Scale: Photoelectric linear encoder;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/01.04.04A/Digital%20Indicator%20ID-H%2C%20CEE%20AC-Adapter/$catalogue/mitutoyoData/PR/543-561D/index.xhtml
