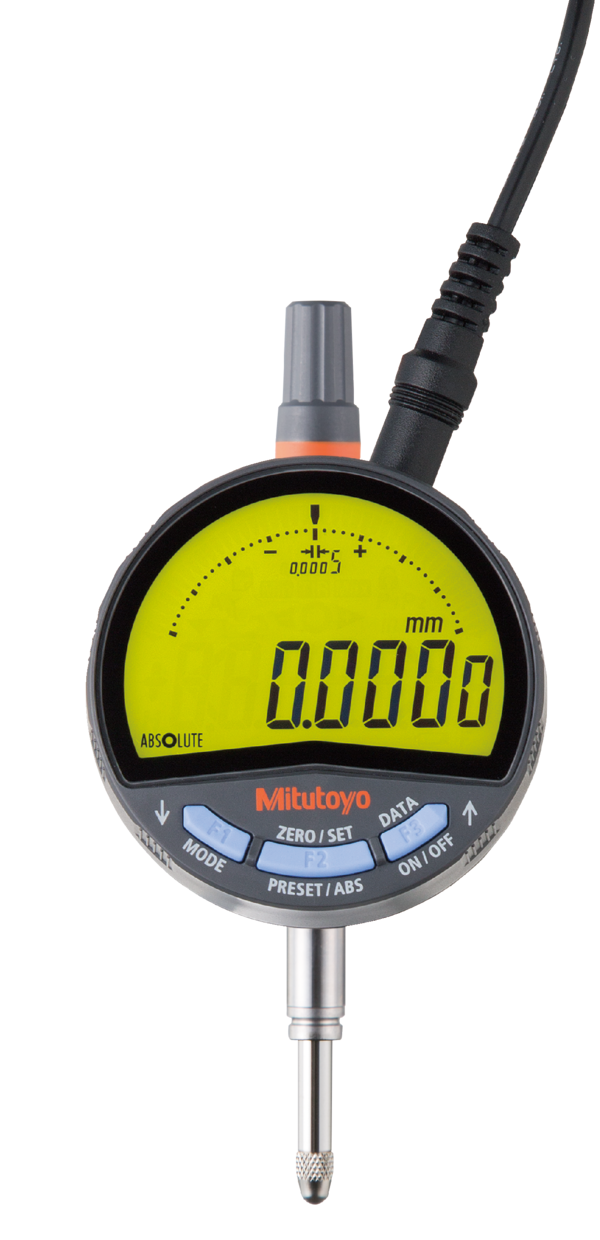

Digital Indicator ID-F

Full Description: This is a superior multifunction indicator. The ABSOLUTE Digimatic Indicator ID-F offers you the following benefits:

Bidirectional Digimatic S1 interface
Red/Green LCD backlight provides you with visual GO/?NG tolerance judgement
Analogue bar-graph display
MAX/MIN/RANGE (runout value) function with a frequency of 500 times/s
External power supply via AC-Adapter
High accuracy and 0,5 ?m digital step
; Mass [g]: 170; Range [mm]: 12.7; Inch-Metric: Metric; H MPE (Hysteresis): 0.002 mm; R MPE (Repeatability): 0.002 mm; Max. Permissible Error E MPE: 0.0025 mm; Digital step: 0,0005 mm/0,001 mm/0,01 mm; Protection: IP30; Max. Permissible Error E MPE (Total Range): 0.0025 mm; Measuring force MPL: ?1.5 N; Digital Scale: Electrostatic capacitance type absolute linear encoder;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/01.04.05A/Digital%20Indicator%20ID-F/$catalogue/mitutoyoData/PR/543-855B-D/index.xhtml
