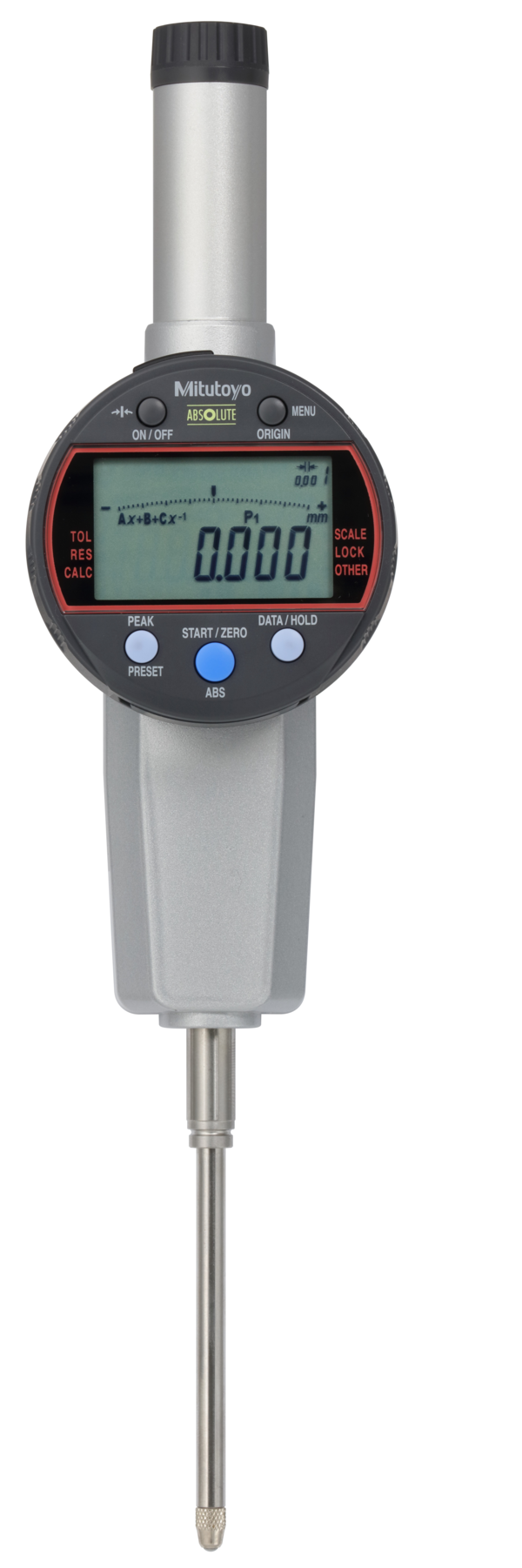

Digital Indicator, Calculation ID-C

Full Description: This indicator allows you to use a calculation function for the measured value Ax+B+Cx -1 The integrated calculation formula is useful in a variety of applications (e.g. roll diameter measurement) Coefficients A,B and C are freely definable. X = displacement of the plunger Analogue bar graph in the display (14 different scales switchable) ? GO/?NG tolerance judgement function MAX/MIN/RANGE function to measure peak values A fast measurement frequency mode(detection cycle 20 ms or 50 times/s) is selectable to measure in the peak detection mode (MAX/MIN/RANGE) more reliably Easy indicator setup ?via a setup menu A USB interface box can be used to set up the indicator from PC via dedicated software ; Mass [g]: 260; Range [mm]: 50.8; Remarks: Digital step is switchable (12 steps); Power supply report: 1 battery CR2032; Battery life: Standard mode: approx. 1 year fast mode: approx. 4.5 month; Type: EN ISO Standard; Inch-Metric: Metric; Delivered: Including CR2032 battery, lifting handle, certificate of inspection; Contact point: Carbide ball, thread: M2.5×0.45; Digital/Analog: Digital; H MPE (Hysteresis): 0.002 mm; R MPE (Repeatability): 0.002 mm; Stem ?: 8 mm; Max. Permissible Error E MPE: 0.006 mm; Digital step: 0.001 mm (default setting), 12 steps; Display: LCD, character height 8 mm, 330? rotatable; Low voltage alarm: Low voltage, ABS composition error, overflow error, setting error; Max. response speed [mm/s]: Unlimited; Protection: IP42; PRESET: Yes; Counting direction switchable: Yes; Inch/Metric switchable: No; Max. Permissible Error E MPE (Total Range): 0.006 mm; Measuring force MPL: ?2.3 N; Measurement frequency (MAX/MIN/RANGE): Standard mode: 10 times/s fast mode: 50 times/s (plunger speed max. 50 ?m/s for peak measurement); Digital Scale: Electrostatic capacitance type absolute linear encoder;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/1300442507140/Digital%20Indicator%2C%20Calculation%20ID-C/$catalogue/mitutoyoData/PR/543-595B-10/index.xhtml
