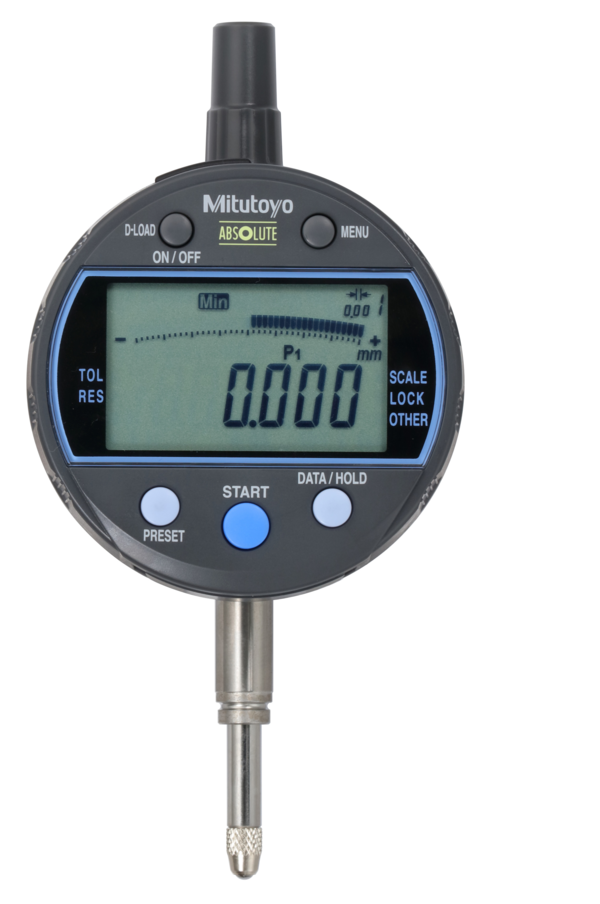

Digital Indicator, Bore Gauge ID-C

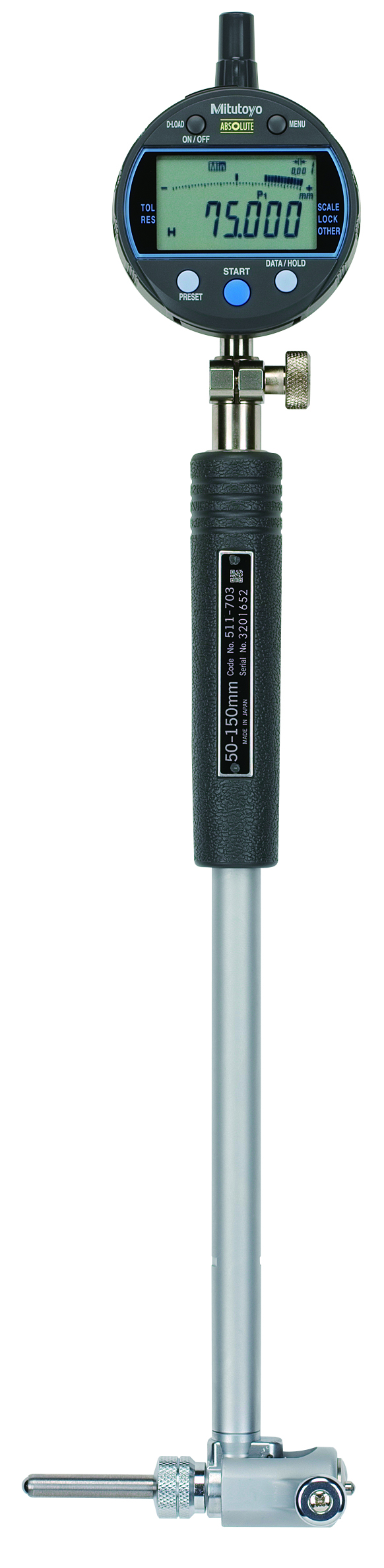

Full Description: This indicator is designed for inside diameter measurement applications on bore gauges It offers the following benefits: Minimum value holding function that allows you to easily detect a hole diameter Analogue bar graph in the display (12 different scales switchable)? The analogue bar graph enhances usability by adding a dial gauge ?feel? to digital measurement GO/?NG tolerance judgement function A fast measurement frequency mode(detection cycle 20ms or 50times/s) is selectable to measure in the peak detection mode?more reliably Easy indicator setup via a setup menu A USB interface box can be used to set up the indicator from PC via dedicated software ; Mass [g]: 170; Range [mm]: 12.7; Power supply report: 1 battery CR2032; Battery life: Standard mode: approx. 1 year fast mode: approx. 4.5 month; Type: EN ISO Standard; Inch-Metric: Metric; Delivered: Including CR2032 battery, certificate of inspection; Contact point: Carbide ball, thread: M2.5×0.45; Digital/Analog: Digital; H MPE (Hysteresis): 0.002 mm; R MPE (Repeatability): 0.002 mm; Stem ?: 8 mm; Max. Permissible Error E MPE: 0.003 mm; Digital step: 0.001 mm/0.01 mm; Display: LCD, character height 8 mm, 330? rotatable; Low voltage alarm: Low voltage, ABS composition error, overflow error, setting error; Max. response speed [mm/s]: Unlimited; Protection: IP42; Data output: Yes; PRESET: Yes; Counting direction switchable: Yes; Inch/Metric switchable: No; Max. Permissible Error E MPE (Total Range): 0.003 mm; Measuring force MPL: ?1.5 N; Measurement frequency (MAX/MIN/RANGE): Standard mode: 10 times/s fast mode: 50 times/s (plunger speed max. 50 ?m/s for peak measurement); Digital Scale: Electrostatic capacitance type absolute linear encoder;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/ABSOLUTE%20Digimatic%20Indicator%20Bore%20Gauges/Digital%20Indicator%2C%20Bore%20Gauge%20ID-C/$catalogue/mitutoyoData/PR/543-310B-10/index.xhtml
