Dial Test Indicator, Horizontal Type

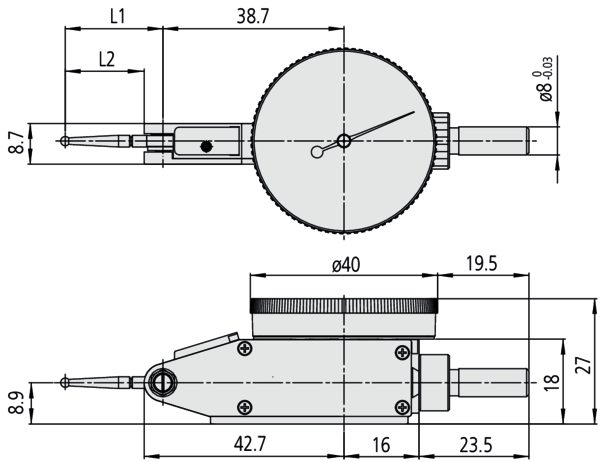

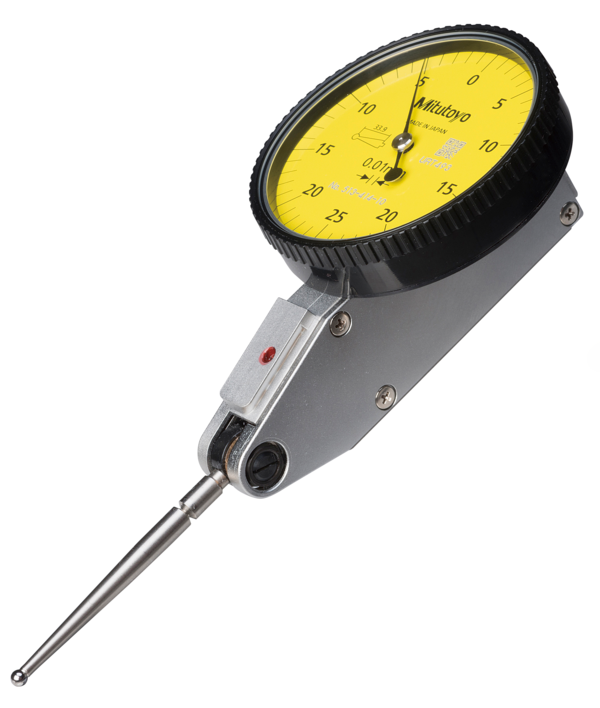

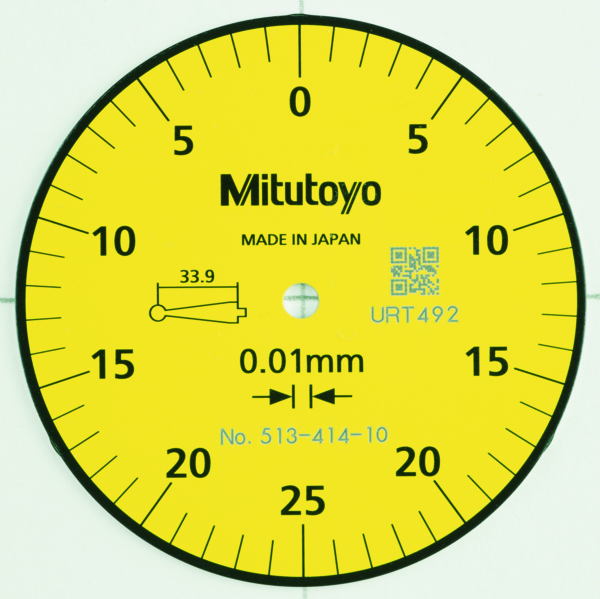

Full Description: A Mitutoyo versatile long stylus, anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a comprehensive set of mounting accessories and interchangeable styli that enable immediate use in almost any situation.; Magnetic stand size (LXWXH): 40; Mass [g]: 45; Range [mm]: 0.5; L1: 37.4; L2: 33,9; Type: Full set; Functions: Full set; Inch-Metric: Metric; Delivered: In a box with stem ?8/4 mm, stylus ?1/2/3 mm, swivel clamp and holding bar; MPE measuring range: 10; Contact point: Thread M 1.7 x 0.35; Dial reading: 0-25-0; Digital/Analog: Analog; Graduation: 0.01; H MPE (Hysteresis): 4; Measuring force: 0.01-0.2; R MPE (Repeatability): 3; ? d: 40; MPE any 10 scale divisions: 5; Carbide stylus tip ?2 mm No.: 131324; Anti-magnet: Yes;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/01.04.05/Dial%20Test%20Indicator%2C%20Horizontal%20Type/$catalogue/mitutoyoData/PR/513-414-10T/index.xhtml
