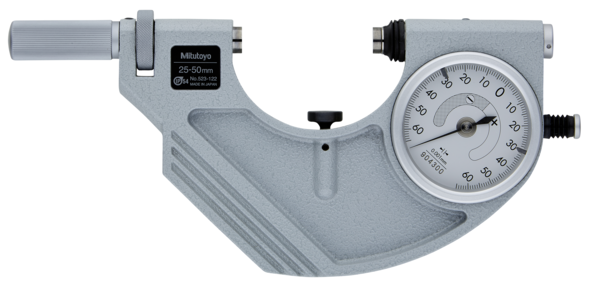

Dial Snap Meter

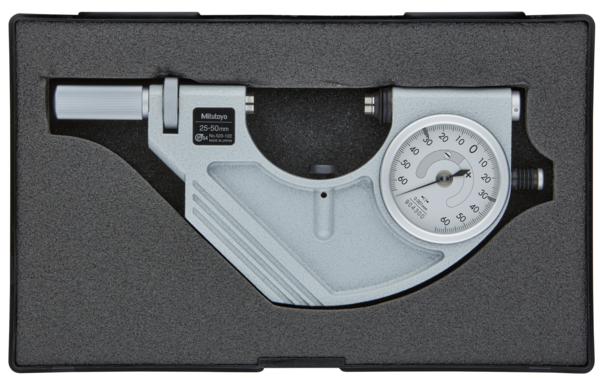

Full Description: A Mitutoyo rapid-retraction-anvil snap meter equipped with a high resolution dial indicator.; Stem hole ?: 56; Mass [g]: 840; Range [mm]: 25 – 50; Inch-Metric: Metric; Delivered: Including box, workpiece rest; Digital/Analog: Analog; Graduation: 0.001 mm; R MPE (Repeatability): 0.4 ?m; Flatness: 0,3 ?m; Parallelism: 0,6 ?m; Measuring spindle: ?10,8 mm; Measuring face: Carbide-tipped, micro-lap finish ?10.8 mm; Anvil retracting stroke: 2 mm; Interchangeable rod [mm]: 35; Accuracy dial comparator: 1 ?m; Indicating range: ?0.06 mm; Graduation dial comparator: 0.001 mm;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/01.02.01.087/Dial%20Snap%20Meter/$catalogue/mitutoyoData/PR/523-122/index.xhtml
