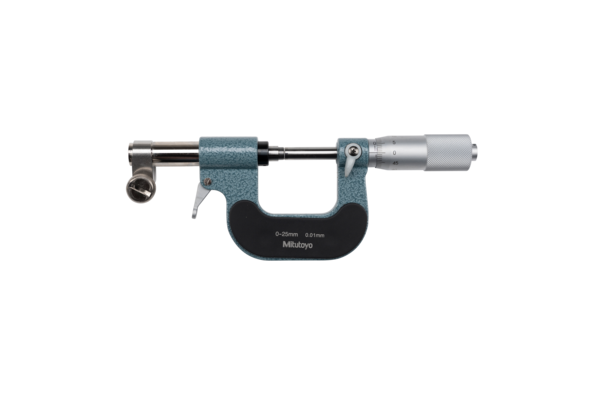

Dial Gauge Micrometer

Full Description: This Dial Gauge Micrometer allows you to quickly measure mass-produced parts. It offers the following benefits:

Designed to mount a dial or a Digital indicator for direct GO/NG judgement of mass-produced parts.
You can take rapid measurements thanks to its anvil retracting trigger.
3 mm anvil retracting stroke.
; Stem hole ?: 39.5; Magnetic stand size (LXWXH): 30; Mass [g]: 480; Range [mm]: 0 – 25; Inch-Metric: Metric; Delivered: including box, gauge block (from 25 mm upward), insulation, key; Graduation: 0.01 mm; Flatness: 0,6 ?m; Parallelism: 2 ?m; Accuracy [?m]: ?2; Measuring spindle: With spindle lock, ?6,35 mm, spindle pitch 0,5 mm; Measuring face: Carbide-tipped, micro-lap finish; Spindle feed error [?m]: 3; Anvil retracting stroke: 3 mm;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/01.02.01.047/Dial%20Gauge%20Micrometer/$catalogue/mitutoyoData/PR/107-201/index.xhtml
