Dial Gauge, Lug Back, ISO Type

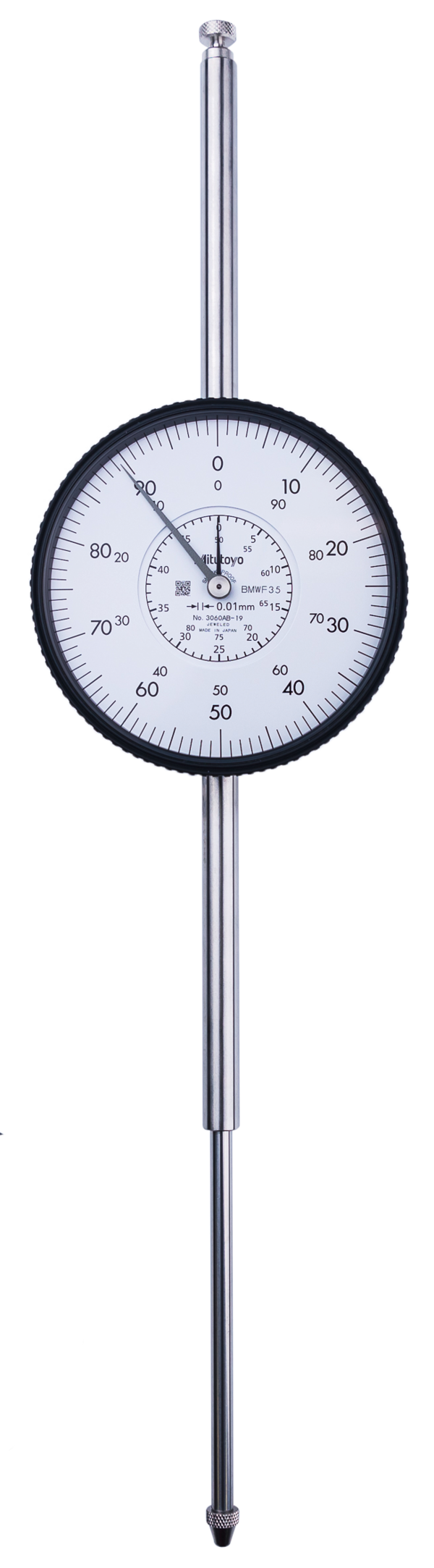

Full Description: A Mitutoyo shockproof, multi-revolution dial indicator suited to general measurement applications in a vertical orientation. The jewelled movement provides lowest friction and stiction for smooth and precise operation.; Stem hole ?: 8 mm; Magnetic stand size (LXWXH): 9; Base size (LxWxH): 202.3; Clamping force (vertical): 73.9; Mass [g]: 314; Range [mm]: 80; Battery life: 50; Type: EN ISO Standard; Functions: 9; Inch-Metric: Metric; Delivered: with certificate of inspection; Range per rev.: 1 mm; EN ISO 463: Errors of indication over a range of (see below); MPE measuring range: 45; Contact point: Carbide tipped, thread: M 2.5 x 0.45 mm; Dial reading: ?0-100; fges: 60; Graduation: 0.01; H MPE (Hysteresis): 9; Measuring force: 0,4-3; Range [mue]: 45; R MPE (Repeatability): 3; MPE any 1 revolution: 15; MPE any 1/2 revolution: 14; MPE any 1/10 revolution: 10; Shockproof: Yes; Jeweled bearing: Yes; Continuous dial: Yes; Coaxial revolution counter: Yes;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/1300892940906/Dial%20Gauge%2C%20Lug%20Back%2C%20ISO%20Type/$catalogue/mitutoyoData/PR/3060A-19/index.xhtml
