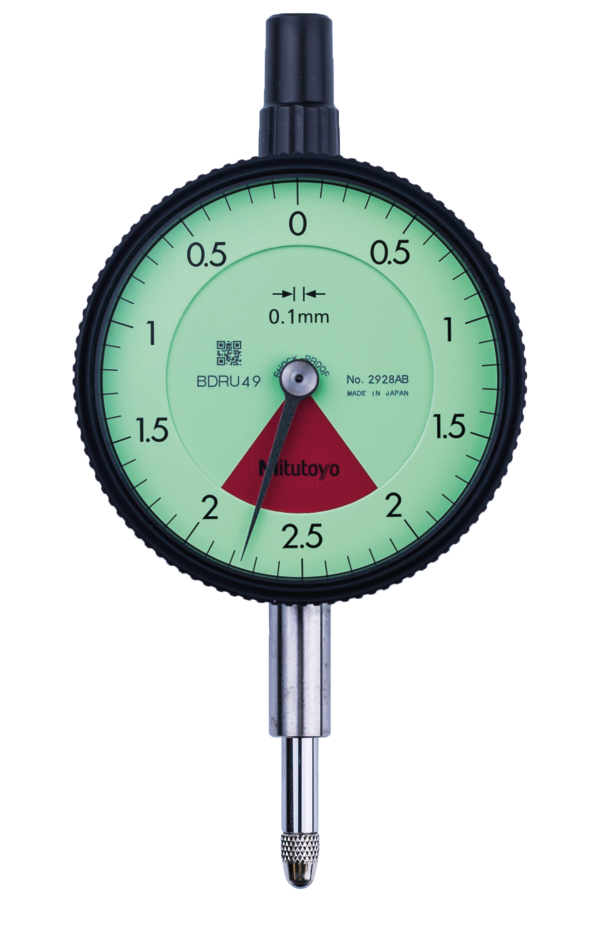

Dial Gauge, Lug Back, ISO Type

Full Description: Graduation 0,01 / 0,1 mm This is a one revolution dial indicator. It offers you the following benefits:

Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed without tools.
No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.
; Stem hole ?: 8 mm; Magnetic stand size (LXWXH): 7.6; Base size (LxWxH): 65.2; Clamping force (vertical): 16.9; Mass [g]: 145; Range [mm]: 4; Battery life: 40; Type: EN ISO Standard; Functions: 10; Inch-Metric: Metric; Delivered: With certificate of inspection; Range per rev.: 5 mm; EN ISO 463: Errors of indication over a range of (see below); MPE measuring range: 25; Contact point: Carbide tipped, thread: M 2.5 x 0.45 mm; Dial reading: 2-0-2; Digital/Analog: Analog; fges: 50; Graduation: 0.1; H MPE (Hysteresis): 12; Measuring force: 0.4-1.4 N; Range [mue]: 25; R MPE (Repeatability): 20; MPE any 1/10 revolution: 15; Shockproof: Yes; Error of indication one revolution: Yes; Plunger Stroke: 10;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/1300889189890/Dial%20Gauge%2C%20Lug%20Back%2C%20ISO%20Type/$catalogue/mitutoyoData/PR/2928A/index.xhtml
