Dial Gauge, ISO Type

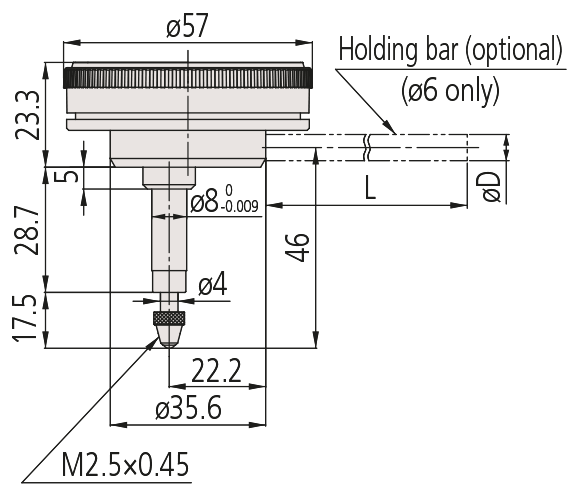

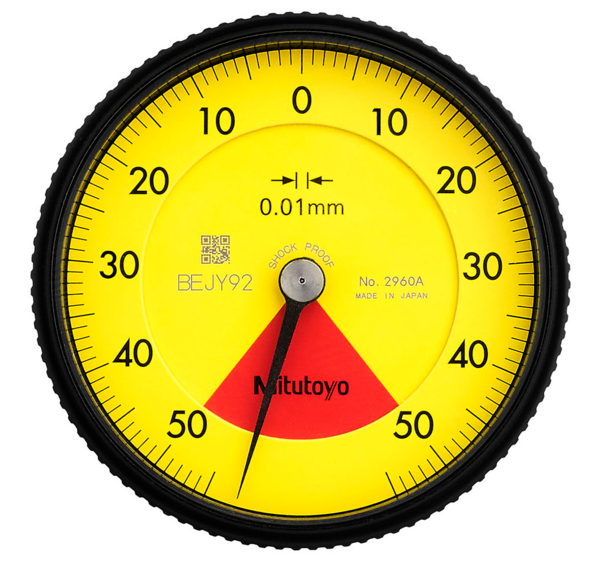

Full Description: This is a back plunger type dial indicator with bezel ? 57 mm.; Stem hole ?: 8 mm; Mass [g]: 115; Range [mm]: 1; Battery life: 12; Type: EN ISO Standard; Functions: 3; Inch-Metric: Metric; Delivered: With certificate of inspection; Range per rev.: 1.27 mm; Balanced dial: Yes; EN ISO 463: Errors of indication over a range of (see below); MPE measuring range: 15; Contact point: Carbide tipped, thread: M 2.5 x 0.45 mm; Dial reading: 50-0-50; Digital/Analog: Analog; fges: 15; Graduation: 0.01; H MPE (Hysteresis): 3.5; Measuring force: 0.4-1.4 N; Range [mue]: 15; R MPE (Repeatability): 3; MPE any 1/10 revolution: 7; Shockproof: Yes; Error of indication one revolution: Yes; Plunger Stroke: 4;Product Link: https://shop.mitutoyo.eu/web/mitutoyo/en/mitutoyo/1300889435140/Dial%20Gauge%2C%20Lug%20Back%2C%20ISO%20Type/$catalogue/mitutoyoData/PR/2960A/index.xhtml
